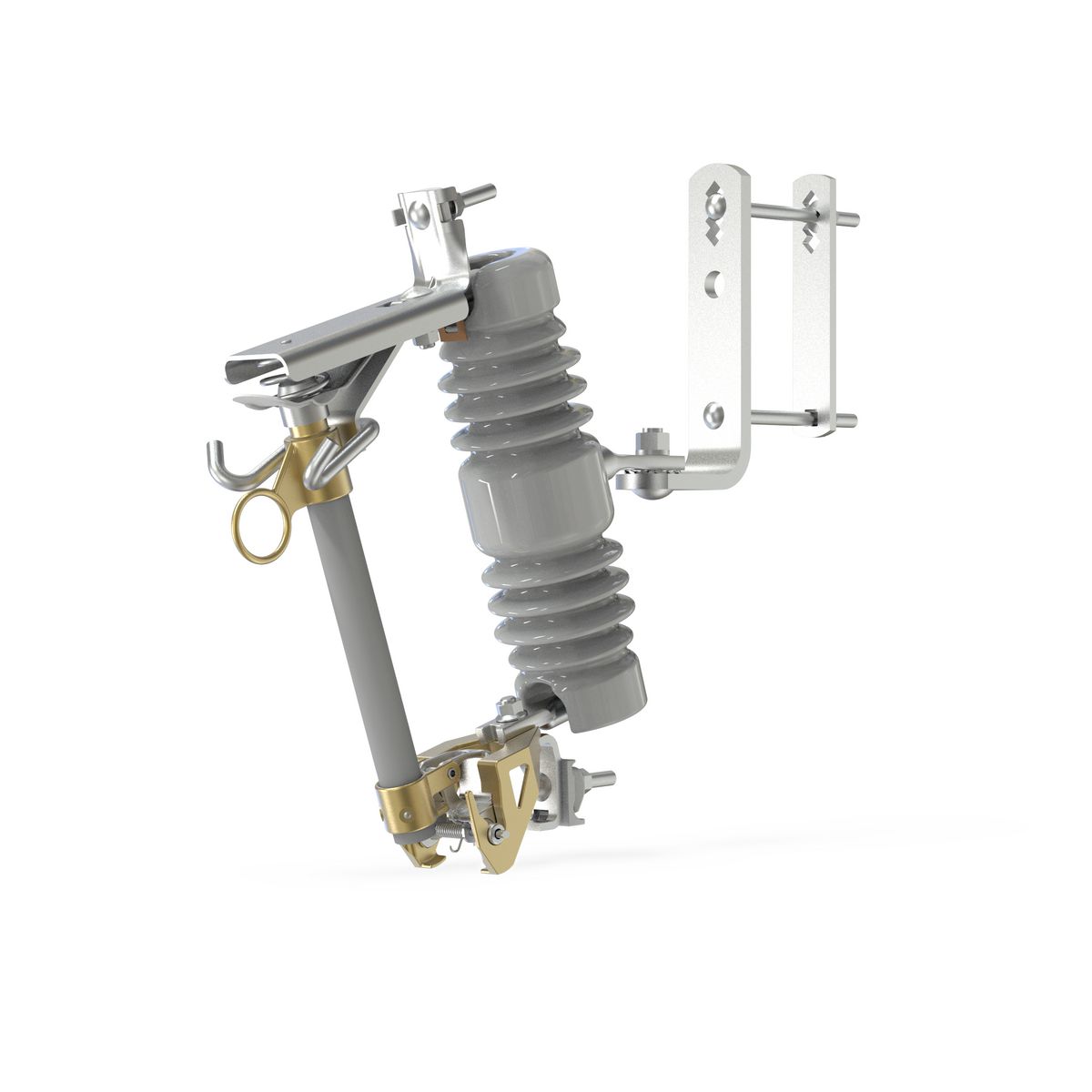

Image thumbnail 5
To:
CC:

Hubbell Power C710112PB 100 Amp 15 kV 110 kV BIL Porcelain Type C Standard Cutout

Manufacturer: Hubbell Power Systems | Catalog # C710112PB | QED Part # 518045
$272.73 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
15 kV, 110 kV BIL, Standard Type C Porcelain Cutout with a 100A, 10kAIC fuseholder, parallel-groove connector and a NEMA "B" crossarm bracket.

Technical Information

Amperage
100 Amp
Applications
Distribution
Current
100 Amp
Fuse Type
NEMA B
Material
Porcelain
Material Type
Standard
Max Voltage
15 kV
Size
8.7 in (220mm)
Tc Connection
Parallel-groove clamp (#6 solid thru 4/0 ACSR (250kcmil))
Type
Cutout
Voltage
15 kV
Wattage
50/60 Watt

Manufacturer Information

Brand
Chance
Sub Brand
Chance

General Product Info

12-Digit UPC
096359029014
Product UPC
09635902901
Weight
17.836 lb

Dimensions

Height
4.13 Inch
Length
14.88 Inch
Width
14.500 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Fully Compliant with ANSI/IEEE C37.41 & C37.42 2016
  • Interchangeable with ABB Type ICX & S&C(MPS) Type XS
  • Single Vent Solid Cap Design
  • Uses Universal Style Fuse Links
  • Synthetic Arc Quenching Fuse Holder Liner Material
