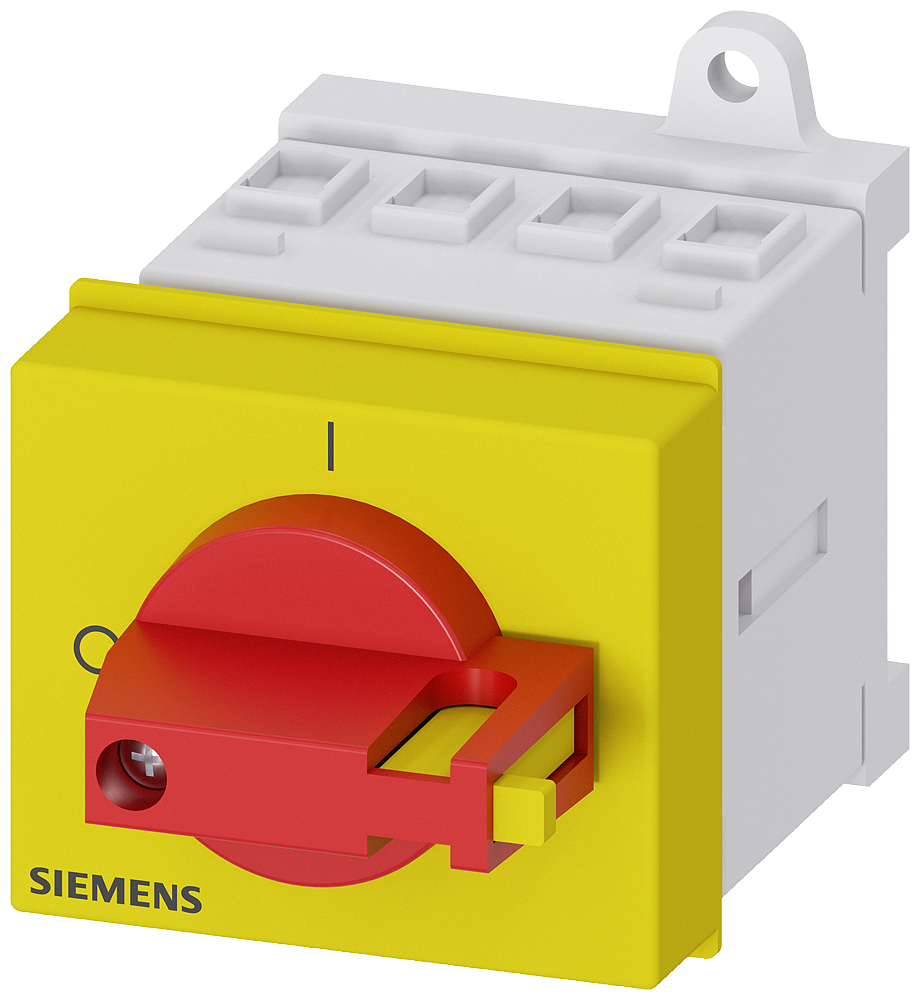

SIE 3LD2030-1TL13 DISC SW 16A KNOB

Manufacturer: Siemens | Catalog # 3LD2030-1TL13 | QED Part # 5091855
$162.09 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SENTRON, 3LD switch disconnector, EMERGENCY-STOP switch, 4-pole, Iu:16 A, Operational power / at AC-23 A at 400 V: 7,5 kW, Distribution board mounting, knob-operated mechanism, red/yellow, handle directly on switch

Technical Information

Actuator
Rotary
Amperage
16 Amp
Applications
OEM Disconnect
Contact Configuration
N/A
Contact Rating
N/A
Enclosure
N/A
Indicator
N/A
Number of Poles
4 Pole
Operating Cycles
N/A
Operating Temperature
-20F to 120F Ambient Temp
Size
5x4x5
Tc Connection
N/A
Trip Type
N/A
Type
3LD
Voltage
690 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
040892953237
Product UPC
04089295323
Weight
0.420 lb

Dimensions

Depth
91 mm
Height
45 mm
Length
4.33 Inch
Width
53 mm

Certifications and Compliance

Country of Origin
Germany
