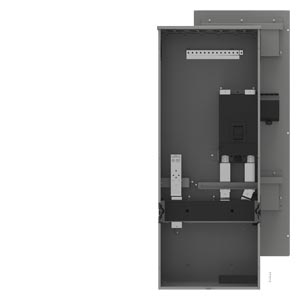

Siemens WB1800CU PMOD WB 1PH 800A 100K

Manufacturer: Siemens | Catalog # WB1800CU | QED Part # 5087559
$9,383.72 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SIEMENS LOW VOLTAGE POWER MOD WB STANDARD CIRCUIT BREAKER MAIN. 1-PHASE 3-WIRE SYSTEM RATED 120/240V (800A) 100KAIC INTERRUPT. SPECIAL FEATURES: NEMA TYPE 3R ENCLOSURE, OH/UG SERVICE FEED. 800A 2-POLE MXD6 FRAME BREAKER INCLUDED (HMXD62B800). FACTORY INSTALLED LUGS.

Technical Information

Amperage
800 Amp
Applications
MAINDISCONNECTFORMODULARMETERING
Enclosure
NEMA3R
Interrupt Rating
65 AIC
Number of Phases
1 Phase
Number of Poles
3 Pole
Tc Connection
MECHANICALLUGS/SIEMENSQuickConnect
Trip Range
Thermal Magnetic
Type
800AMXD6FRAMEBREAKER(HMXD63B800)INSTALLED
Voltage
240 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
POWERMOD

General Product Info

12-Digit UPC
040892150353
Product UPC
04089215035
Weight
256.500 lb

Dimensions

Height
61.19 Inch
Length
24.19 Inch
Width
3

Certifications and Compliance

Country of Origin
USA
