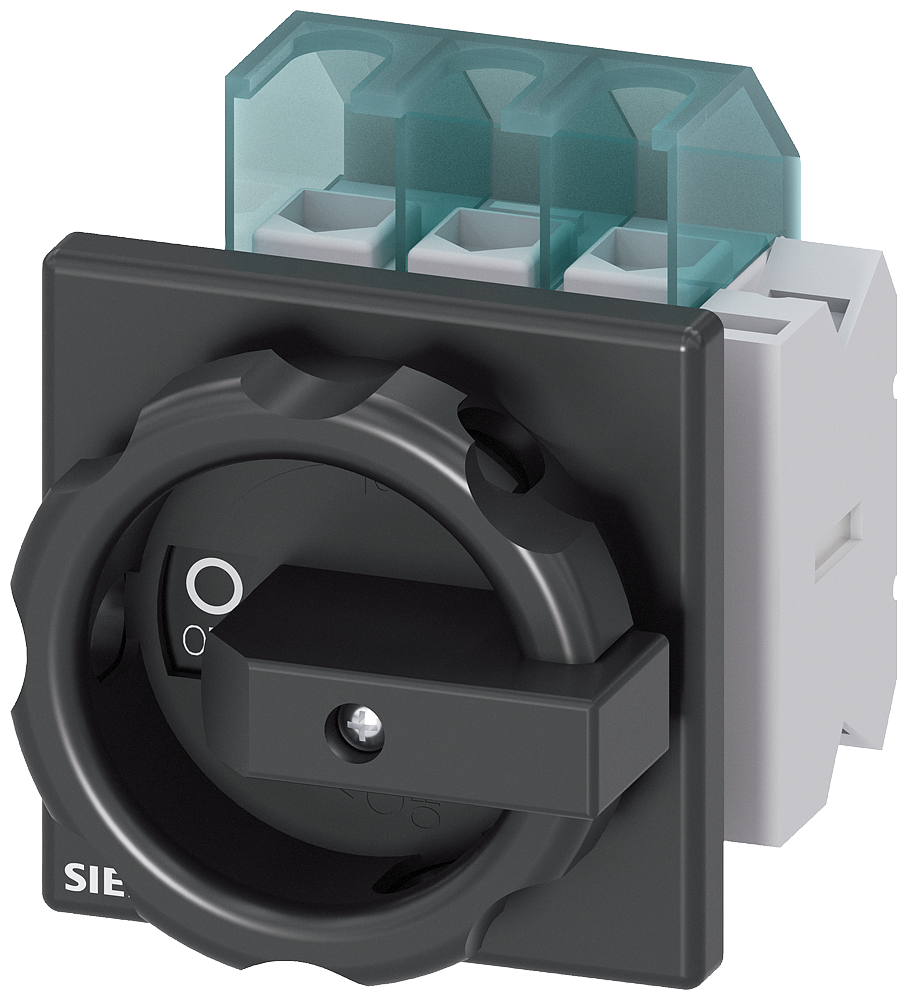

Siemens 3LD2203-1TP51 DISC SW 32A ROT H

Manufacturer: Siemens | Catalog # 3LD2203-1TP51 | QED Part # 5087295
$215.91 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
MAIN CONTROL SWITCH 3-POLE IU=32, P/AC-23A AT 400V=11.5KW 1NO+1NC, FRONT MOUNTING FOUR-HOLE MOUNTING ROTARY OPERATING MECHANISM BLACK

Technical Information

Actuator
Rotary
Amperage
32 Amp
Applications
OEM Disconnect
Contact Configuration
N/A
Contact Rating
N/A
Enclosure
N/A
Indicator
N/A
Number of Poles
3 Pole
Operating Cycles
N/A
Operating Temperature
-20F to 120F Ambient Temp
Size
3x3x4
Tc Connection
N/A
Trip Type
N/A
Type
3LD
Voltage
690 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
040892606980
Product UPC
04089260698
Weight
0.532 lb

Dimensions

Depth
93 mm
Height
83 mm
Length
3.54 Inch
Width
67 mm

Certifications and Compliance

Country of Origin
Germany
