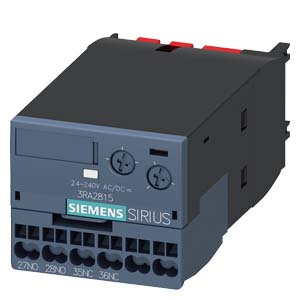

Product image for Siemens 3RA28152FW10 TIMING RELAY MOD S
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Siemens 3RA28152FW10 TIMING RELAY MOD S

Manufacturer: Siemens | Catalog # 3RA28152FW10 | QED Part # 5086826
$695.88 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Solid-state time-delay auxiliary switch, off-delay without auxiliary voltage relay 1 nc + 1 no 24...240V AC/DC time range 0.05...100s for snapping onto the front for 3rt2 contactors spring-loaded terminals

Technical Information

Amperage
3 Amp
Contact Configuration
1 NO, 1 NC Auxiliary
Contact Rating
1 A at 24 VDC
Mounting Type
Clip-On
Temperature Rating
-25 to 60 degrees C Ambient
Terminal Type
Spring Loaded
Type
Timing Delay, Auxiliary
Voltage
24-240 VAC/VDC

Manufacturer Information

Brand
Siemens
Sub Brand
Sirius

General Product Info

12-Digit UPC
040892635324
Environmental Conditions
0 - 95% RH
Product UPC
04089263532
Used With
3RT2, 3RH21, 3RH24 Contactors
Weight
0.165 lb

Dimensions

Height
1.78 Inch
Length
4.26 Inch
Width
1.970 in

Certifications and Compliance

Country of Origin
Czechia
