SIE 3LD2804-1TP51 DISC SW 125A ROT

Manufacturer: Siemens | Catalog # 3LD2804-1TP51 | QED Part # 5086594
$513.53 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet

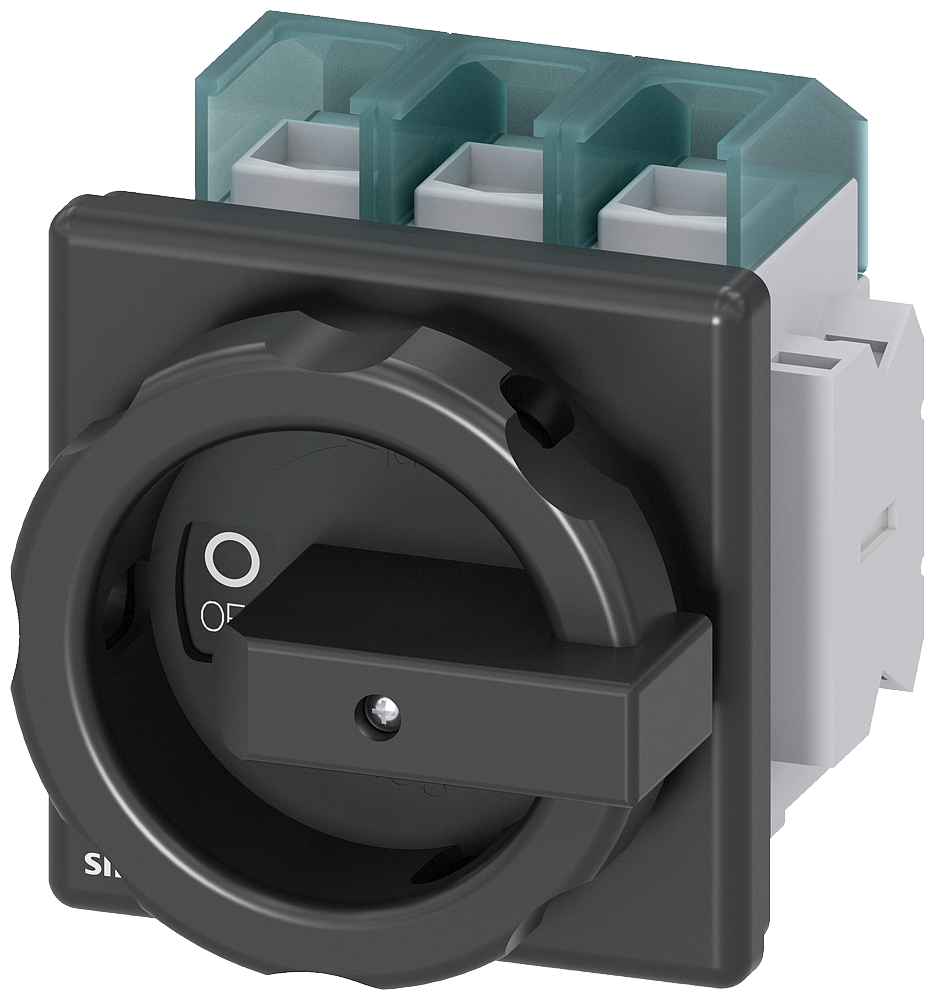

SENTRON, 3LD switch disconnector, main switch, 3- pole, Iu:125 A, Operational power / at AC-23 A at 400 V: 45 kW, front-mounted, 1NC, 1NO, rotary operating mechanism, black, 4-hole mounting of the handle

Technical Information

Actuator
Rotary
Amperage
125 Amp
Applications
OEM Disconnect
Contact Configuration
N/A
Contact Rating
N/A
Enclosure
N/A
Indicator
N/A
Number of Poles
3 Pole
Operating Cycles
N/A
Operating Temperature
-20F to 120F Ambient Temp
Size
1x1x1
Tc Connection
N/A
Trip Type
N/A
Type
3LD
Voltage
690 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
040892631098
Product UPC
04089263109
Weight
1.139 lb

Dimensions

Depth
112.5 mm
Height
106 mm
Length
5.118 Inch
Width
90 mm

Certifications and Compliance

Country of Origin
Germany
