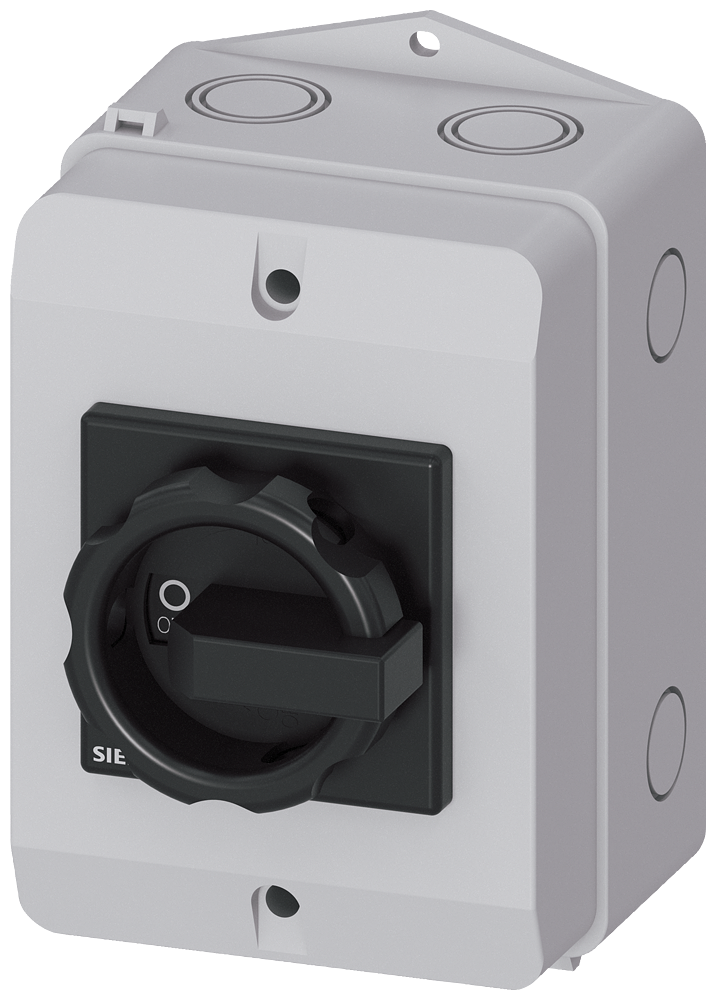

SIE 3LD2064-1GP51-0US2 DISC SW 16A

Manufacturer: Siemens | Catalog # 3LD2064-1GP51-0US2 | QED Part # 5024341
$1,274.73 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SENTRON, 3LD switch disconnector, main switch, 3- pole, Iu:16 A, Operational power / at AC-23 A at 400 V: 7,5 kW, molded-plastic enc losure for inch threaded joint, 1NC, 1NO, rotary operating mechanism, black

Technical Information

Actuator
Rotary
Amperage
16 Amp
Applications
OEM Disconnect
Contact Configuration
N/A
Contact Rating
N/A
Enclosure
Yes
Indicator
N/A
Mounting Type
Center Hole Mounted
Number of Poles
3 Pole
Operating Cycles
N/A
Operating Temperature
-20 To 120 degrees F
Size
118x100x164mm
Standard
UL
Tc Connection
N/A
Trip Type
N/A
Type
3LD
Voltage
690 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
804766478031
Product UPC
80476647803
Weight
1.082 lb

Dimensions

Depth
118 mm
Height
164 mm
Length
6.417 Inch
Width
100 mm

Certifications and Compliance

Country of Origin
Germany
