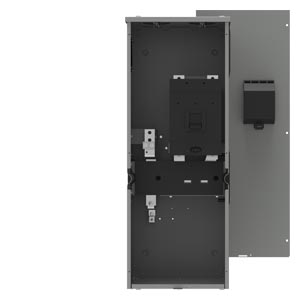

Siemens WB1600CU Powmod WB 600 Amp 100 kaic 1 Phase Type 3R Circuit Breaker

Manufacturer: Siemens | Catalog # WB1600CU | QED Part # 5011542
$6,654.38 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SIEMENS LOW VOLTAGE POWER MOD WB STANDARD CIRCUIT BREAKER MAIN. 1-PHASE 3-WIRE SYSTEM RATED 120/240V (600A) 100KAIC INTERRUPT. SPECIAL FEATURES: NEMA TYPE 3R ENCLOSURE, OH/UG SERVICE FEED. 600A 2-POLE LXD6 FRAME BREAKER INCLUDED (HLXD62B600). FACTORY INSTALLED LUGS.

Technical Information

Amperage
600 Amp
Applications
MAINDISCONNECTFORMODULARMETERING
Enclosure
NEMA3R
Interrupt Rating
22 AIC
Number of Phases
1 Phase
Number of Poles
2 Pole
Tc Connection
MECHANICALLUGS/SIEMENSQuickConnect
Trip Range
Thermal Magnetic
Type
600ALXD6FRAMEBREAKER(HLXD63B600)INSTALLED
Voltage
120/240 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
POWERMOD

General Product Info

12-Digit UPC
783087906945
Product UPC
78308790694
Weight
95.800 lb

Dimensions

Height
39.19 Inch
Length
15.2 Inch
Width
11.030 in

Certifications and Compliance

Country of Origin
USA
