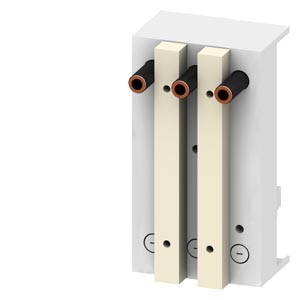

Siemens 8US1213-4AQ01 FASTBUS SHOE 150A

Manufacturer: Siemens | Catalog # 8US1213-4AQ01 | QED Part # 5003698
$1,077.49 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
BUSBAR ADAPTER 60MM SYS. UL508 BUSBAR SYSTEM 60MM BAR THICKNESS: TT-PROFILE SUITABLE FOR FEEDER CIRCUITS FOR 3VL CIRCUIT BREAKER WITH CONTACTING BY TUBES FOR CABLE FEEDER TOP/BOTTOM ADAPTER LENGTH 190MM ADAPTER WIDTH 105MM FOR VL 150X UL, CG FRAME UL RATING 240 - 600V/150A IEC RATING 690V/160A

Technical Information

Actuator
N/A
Amperage
150 Amp
Applications
Distribution
Enclosure
N/A
Frame
N/A
Load Rating
N/A
Operating Temperature
N/A
Tc Connection
N/A
Trip Range
N/A
Trip Type
N/A
Type
N/A
Voltage
240-600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Fastbus

General Product Info

12-Digit UPC
754554958026
Environmental Conditions
40 C
Product UPC
75455495802
Weight
2.249 lb

Dimensions

Height
3.7 Inch
Length
8.2 Inch
Width
4.800 in

Certifications and Compliance

Country of Origin
Germany
