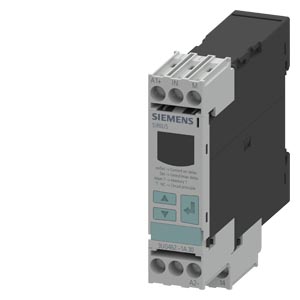

Product image for Siemens 3UG4622-1AA30 MONITORING RELAY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens 3UG4622-1AA30 MONITORING RELAY

Manufacturer: Siemens | Catalog # 3UG4622-1AA30 | QED Part # 4987579
$745.02 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Current monitoring, 22.5 mm from 0.1 to 10 a AC/DC overshoot and undershoot 24 V AC/DC DC and AC 50 to 60 HZ start kick and spike delay 0.1 to 20s hysteresis 0.01 to 0.5 a 1 changeover contact with or without error log screw terminal follow-on product for 3ug3522-1AC..

Technical Information

Amperage
0.05-15 Amp
Conductor Size
20-14 AWG
Contact Configuration
SPDT - 1 CO
Mounting Type
Snap-On
Number of Poles
1 Pole
Operating Cycles
10000000 Mechanical Life, 100000 Electrical Life
Power Rating
2 W
Temperature Rating
-25 to 60 degrees C Ambient
Type
Digital
Voltage
24 VAC/VDC

Manufacturer Information

Brand
Siemens

General Product Info

12-Digit UPC
754554930589
Product UPC
75455493058
Weight
0.323 lb

Dimensions

Depth
91 mm
Height
92 mm
Length
3.9 Inch
Width
22.5 mm

Certifications and Compliance

Country of Origin
Germany
