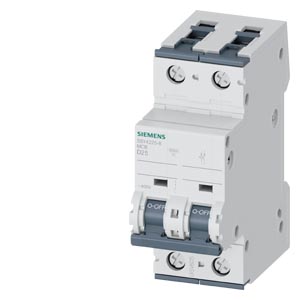

Siemens 5SY4225-8 SUP PTOR 5SY4 2P 480V

Manufacturer: Siemens | Catalog # 5SY4225-8 | QED Part # 4984521
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet Product Brochure
SUPPLEMENTARY PROTECTOR,2P,25A,CURVE D Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 2 Pole, 25 Amps, 480 VAC, Trip Characteristic Curve D, 36mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
25 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
Quick Assembly System
Number of Poles
2 Pole
Short Circuit Current
5 kA
Standard
CE,CSA 22.2 NO. 235,EN 60 898,EN 60 947-2,IEC,UL 1077
Tc Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Siemens
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554876047
Class
D
Product UPC
75455487604
Weight
0.710 lb

Dimensions

Depth
76 mm
Height
3.6 Inch
Length
2.8 Inch
Width
1.200 in

Certifications and Compliance

Country of Origin
Germany
