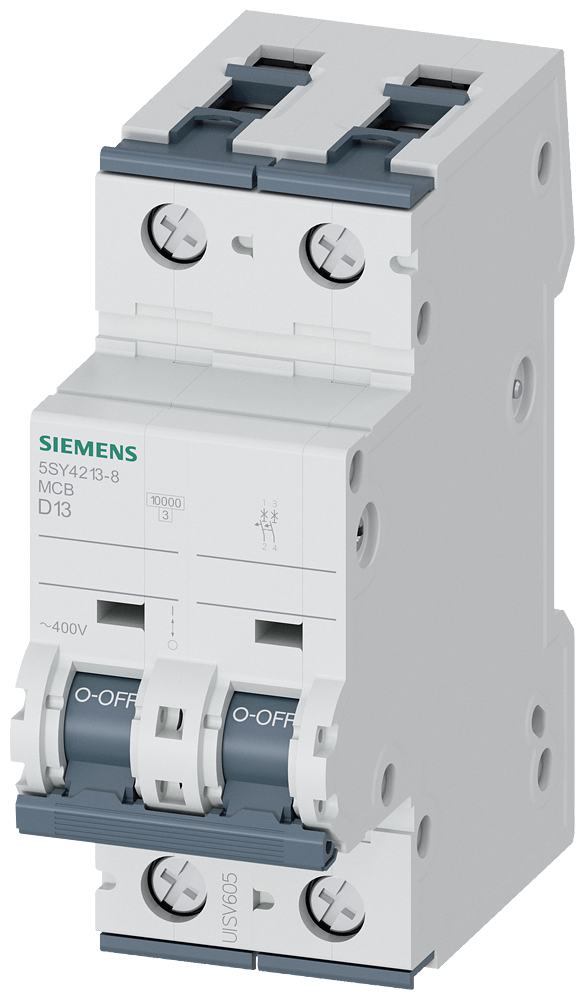

Product image for S-A 5SY4213-8 SUP PTOR 5SY4 2P 480V
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
To:
CC:

S-A 5SY4213-8 SUP PTOR 5SY4 2P 480V

Manufacturer: Siemens | Catalog # 5SY4213-8 | QED Part # 4984520
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SUPPLEMENTARY PROTECTOR,2P,13A,CURVE D Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 2 Pole, 13 Amps, 480 VAC, Trip Characteristic Curve D, 36mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
13 Amp
Applications
For Supplementary Protection
Interrupt Rating
5 kAIC
Material
Thermoplastic
Number of Poles
2 Pole
Standard
CSA,E2186,UL
Tc Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
754554876016
Class
D
Product UPC
75455487601
Weight
0.670 lb

Dimensions

Height
3.35 Inch
Length
3.85 Inch
Width
1.600 in

Certifications and Compliance

Country of Origin
Germany
