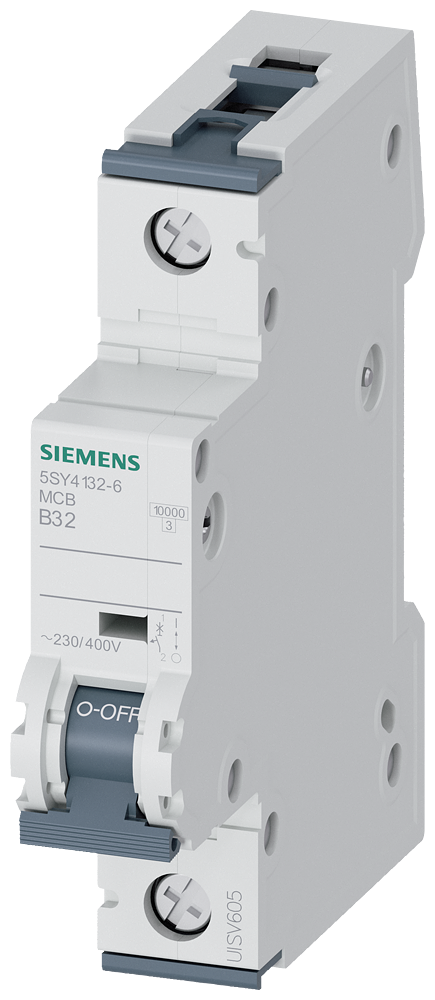

Siemens 5SY4132-6 SUP PTOR 5SY4 1P 240V

Manufacturer: Siemens | Catalog # 5SY4132-6 | QED Part # 4984461
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
SUPPLEMENTARY PROTECTOR,1P,32A,CURVE B Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 1 Pole, 32 Amps, 277 VAC, Trip Characteristic Curve B, 18mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
32 Amp
Applications
SUPPLEMENTARY PROTECTION
Interrupt Rating
5 kAIC
Material
Thermoplastic
Number of Poles
1 Pole
Tc Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554875309
Class
B
Product UPC
75455487530
Weight
0.376 lb

Dimensions

Height
3.27 Inch
Length
3.661 Inch
Width
0.827 in

Certifications and Compliance

Country of Origin
Germany
