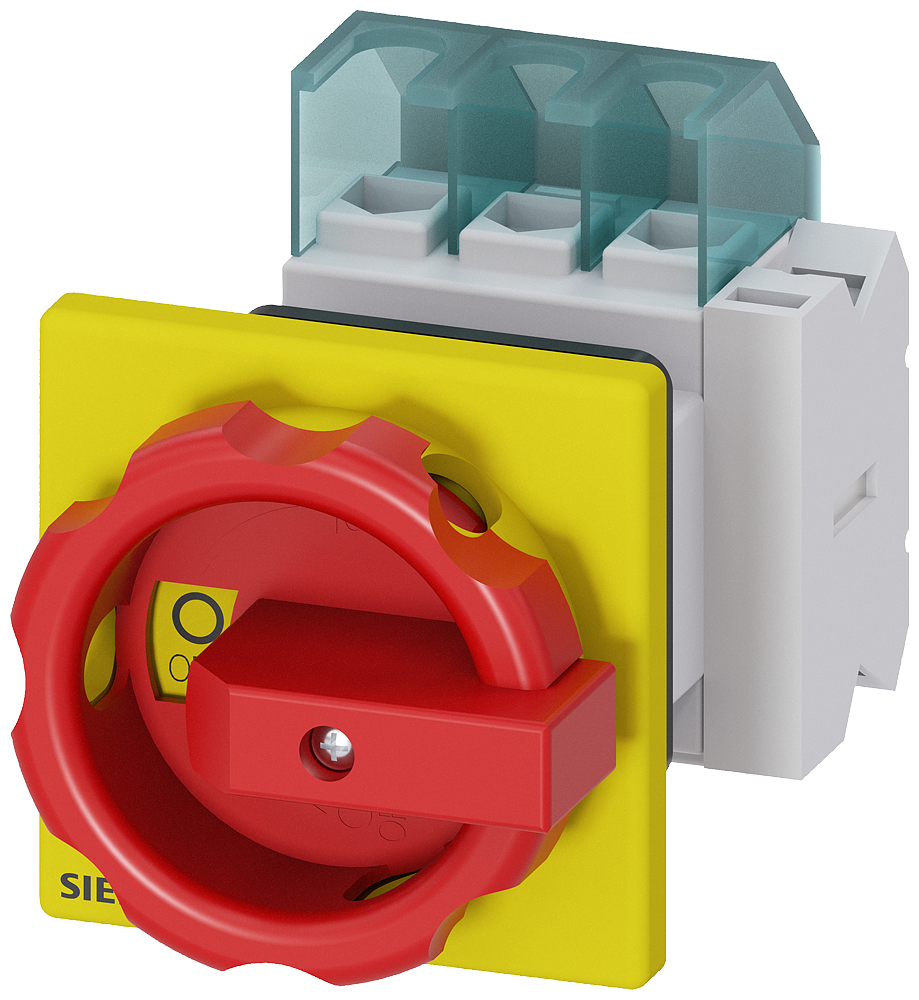

Product image for Siemens 3LD2154-1TP53 DISC SW 25A ROT H
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
To:
CC:

Siemens 3LD2154-1TP53 DISC SW 25A ROT H

Manufacturer: Siemens | Catalog # 3LD2154-1TP53 | QED Part # 4983841
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
DISC SWITCH 3P R/Y ROTARY 25A 1HOLE DOOR ROTARY ACTUATOR RED/YELLOW CENTRAL-HOLE MOUNTING 1NO+1 NC, FRONT MOUNTING IU=25, P/AC-23A AT 400V=9,5KW EMGNCY MAIN CNTRL SWITCH 3-POLE

Technical Information

Actuator
Rotary
Amperage
25 Amp
Applications
OEM Disconnect
Contact Configuration
N/A
Contact Rating
N/A
Enclosure
N/A
Indicator
N/A
Number of Poles
3 Pole
Operating Cycles
N/A
Operating Temperature
-20F to 120F Ambient Temp
Size
4x3x3
Tc Connection
N/A
Trip Type
N/A
Type
3LD
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
754554729923
Product UPC
75455472992
Weight
0.563 lb

Dimensions

Depth
117 mm
Height
84 mm
Length
18.19 Inch
Width
67 mm

Certifications and Compliance

Country of Origin
Germany
