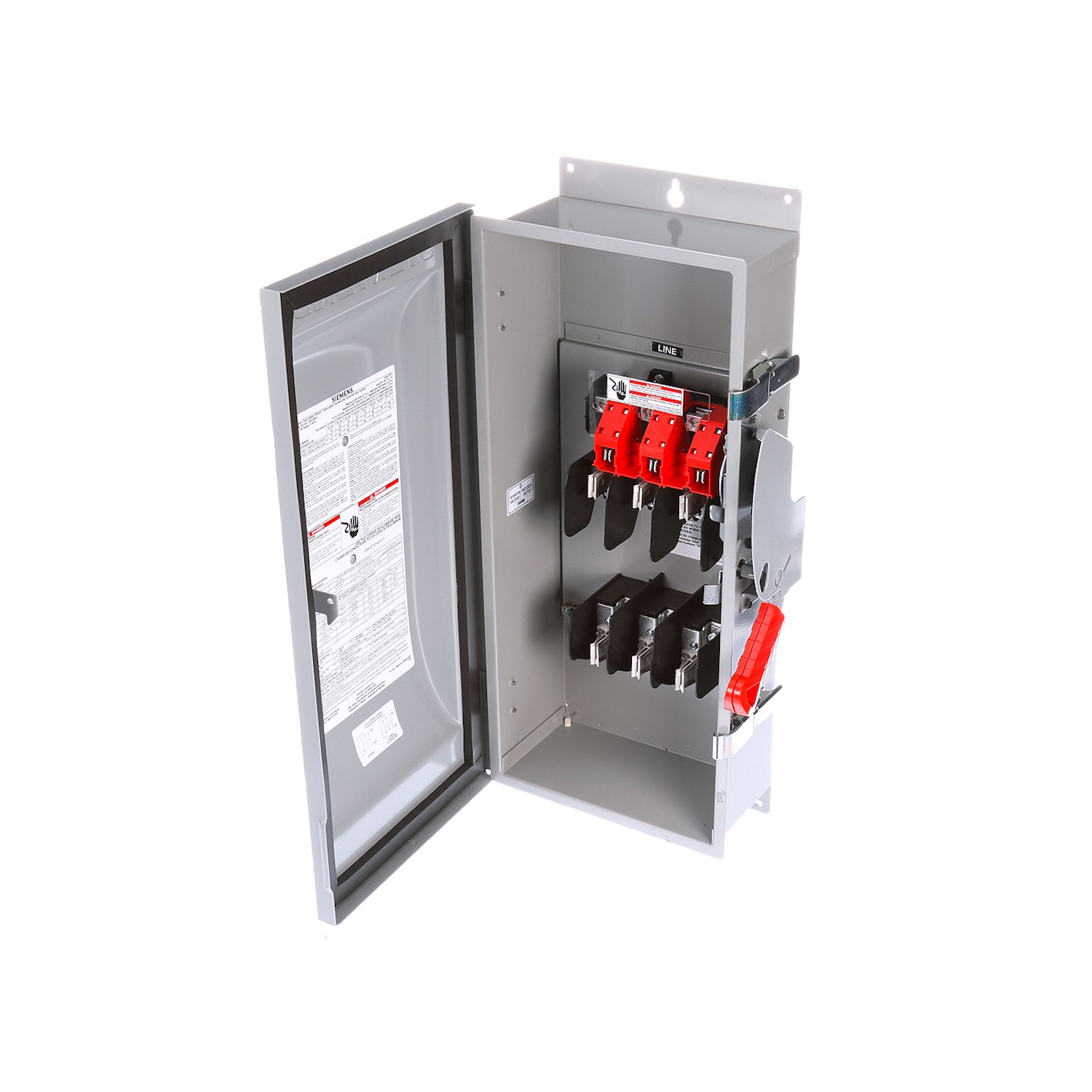

S-A HFC322J HDSS FUS CSA 3P3W 240V

Manufacturer: Siemens | Catalog # HFC322J | QED Part # 4974253
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Primary Spec Sheet
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. Type: ENCLOSED, SAFETY SWITCH Std: CSA V. Rating: 240V A. Rating: 60A Wattage: 3W No. Of Poles: 3P F. Rating: 60Hz Action: SINGLE THROW

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage
60 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection Type
MECHANICAL LUGS
Enclosure
NEMA12
Material
Steel
Number of Poles
3 Pole
Operating Cycles
10000
Operating Temperature
-29 degrees C
Tc Connection
MECHANICALLUGS
Type
Heavy Duty, Enclosed, Fused, Single Throw, Toggle
Voltage
240 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643511651
Product UPC
78364351165
Weight
4.700 lb

Dimensions

Height
6.27 Inch
Length
7.56 Inch
Width
7.560 in

Certifications and Compliance

Country of Origin
Mexico
