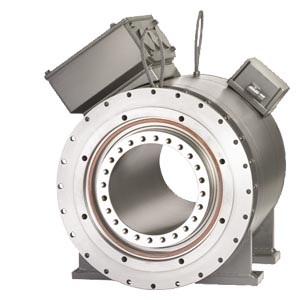

TORQUE MOTOR, 340V, 100NM, 400RPM, 4.2 KW SHAFT HEIGHT 150 INCREMENTAL VALUE ENCODER SIN/COS, 1VPP, 2048 INCR/REV (MOUNTING OVER BELT, WITH DRIVE-CLIQ) FRAME SIZE IMB 14 TERMINAL BOX, CABLE OUTLET AXIAL NON-DRIVE END TERMINAL BOX ON TOP, WATER CONNECTION LEFT OBSERVE THAT A LICENSE TO THE US PATENT US5584621 AND THE CORRESPONDING WORLDWIDE PROTECTION RIGHTS COULD BE REQUIRED WHEN THE DIRECT MOTORS IN FORK HEADERS ARE USED FOR MACHINE TOOLS OR ROBOTS WHEN USING TORQUE MOTORS IN HACKERS/RECYCLING MACHINES, THE FOLLOWING PATENTS MUST BE CAREFULLY OBSERVED:EP0419919B1 AND EP1749576A1/DE102005037668A ROTOR INSIDE DIAMETER STANDARD STORAGE STANDARD
