Ilsco PBTT-3-750-F Nimbus4Flex Shapes Insulated Aluminum Multi-Tap Connector, Conductor Range 750-250, Flex 500-3/0 H,I,K 4/0-3/0 M 535.3-3/0 DLO, 3 Ports, T shaped, Tin Plated, UL, CSA | Quality Electrical Distribution (QED)

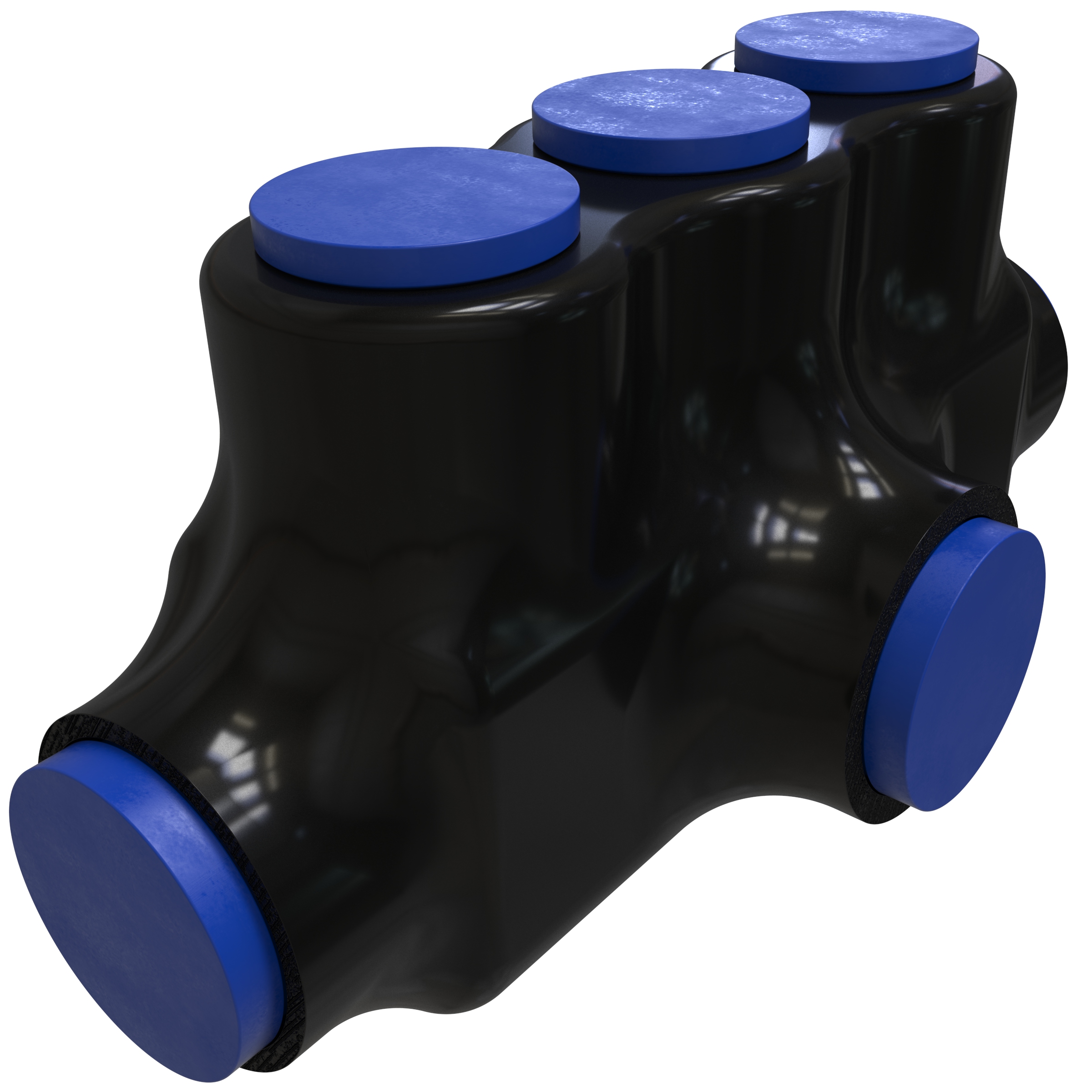

Product image for Ilsco PBTT-3-750-F Nimbus4Flex Shapes Insulated Aluminum Multi-Tap Connector, Conductor Range 750-250, Flex 500-3/0 H,I,K 4/0-3/0 M 535.3-3/0 DLO, 3 Ports, T shaped, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco PBTT-3-750-F Nimbus4Flex Shapes Insulated Aluminum Multi-Tap Connector, Conductor Range 750-250, Flex 500-3/0 H,I,K 4/0-3/0 M 535.3-3/0 DLO, 3 Ports, T shaped, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PBTT-3-750-F | QED Part # 4963602
$520.89 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Nimbus4Flex Shapes Insulated Aluminum Multi-Tap Connector, Conductor Range 750-250, Flex 500-3/0 H,I,K 4/0-3/0 M 535.3-3/0 DLO, 3 Ports, T shaped, Tin Plated, UL, CSA

Technical Information

Amperage
CU:535;AL:435
Applications
Connecting Tap
Conductor Material
Aluminum,Copper
Conductor Type
Flex,Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
3
Number of Ports
3
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PBTT:FLEX INS BLK TEE TAP
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669721744
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366972174
Weight
1.162 lb

Dimensions

Height
3.26 Inch
Length
6.618 Inch
Width
2.891 in
