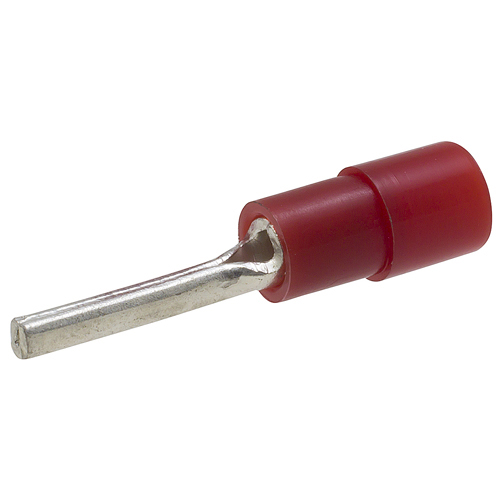

Image thumbnail 1
To:
CC:

ILS NPBR-18-512-P50 CU CMP 22-18 .5

Manufacturer: Ilsco | Catalog # NPBR-18-512-P50 | QED Part # 4959390
$27.72 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCON Pin Terminal, Compression connection, Copper material, Tin plated connector, UL/cUL 486A/B Listed, Copper Primary Conductor 18 Str - 22 Str and 18 Sol - 22 Sol, 1 conductors, Nylon insulation, rated for 600 V, uses for installation, primary color Silver, Red, tongue type Pin, die index A,

Technical Information

Applications
Pin Terminal
Cable Size
AL (Primary, run, main, line):NA
Conductor Material
Copper
Connection Type
Compression
Material
Copper
Number of Conductors
1
Number of Holes
NA
Size
L:3.5;W:1.21;H:2.88 IN
Tc Connection
Compression
Temperature Rating
105 degrees C
Type
ILP:ILSCON PIN
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCON

General Product Info

12-Digit UPC
783669207842
Color
Red,Silver
Construction Type
Brazed
Product UPC
78366920784
Weight
0.182 lb

Dimensions

Height
2.88 Inch
Length
3-1/2 Inch
Width
1.21 in
