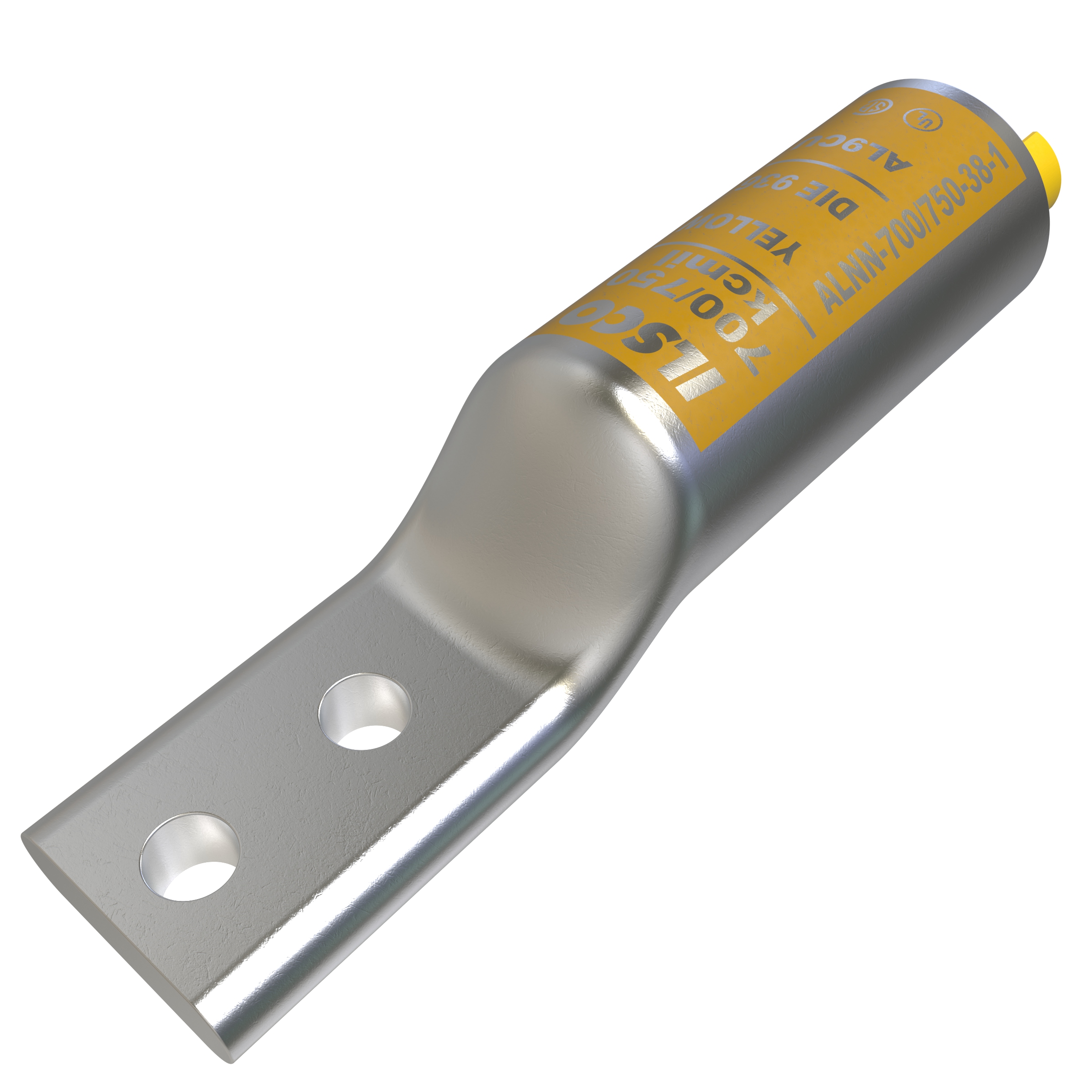

ILS ALNN-700/750-38-1 AL COMP NARRO

Manufacturer: Ilsco | Catalog # ALNN-700/750-38-1 | QED Part # 4958116
$144.05 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, narrow tang, 2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1 in., UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 700/750 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Yellow, primary color Silver, die index 936,

Technical Information

Applications
Aluminum Compression Lug
Conductor Type
Stranded
Material
Aluminum
Size
L:5.925;W:1.46;H:1.505 IN
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Temperature Rating
90 degrees C
Type
ALNN:LONG NARROW TANG
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669691443
Color
Silver
Product UPC
78366969144
