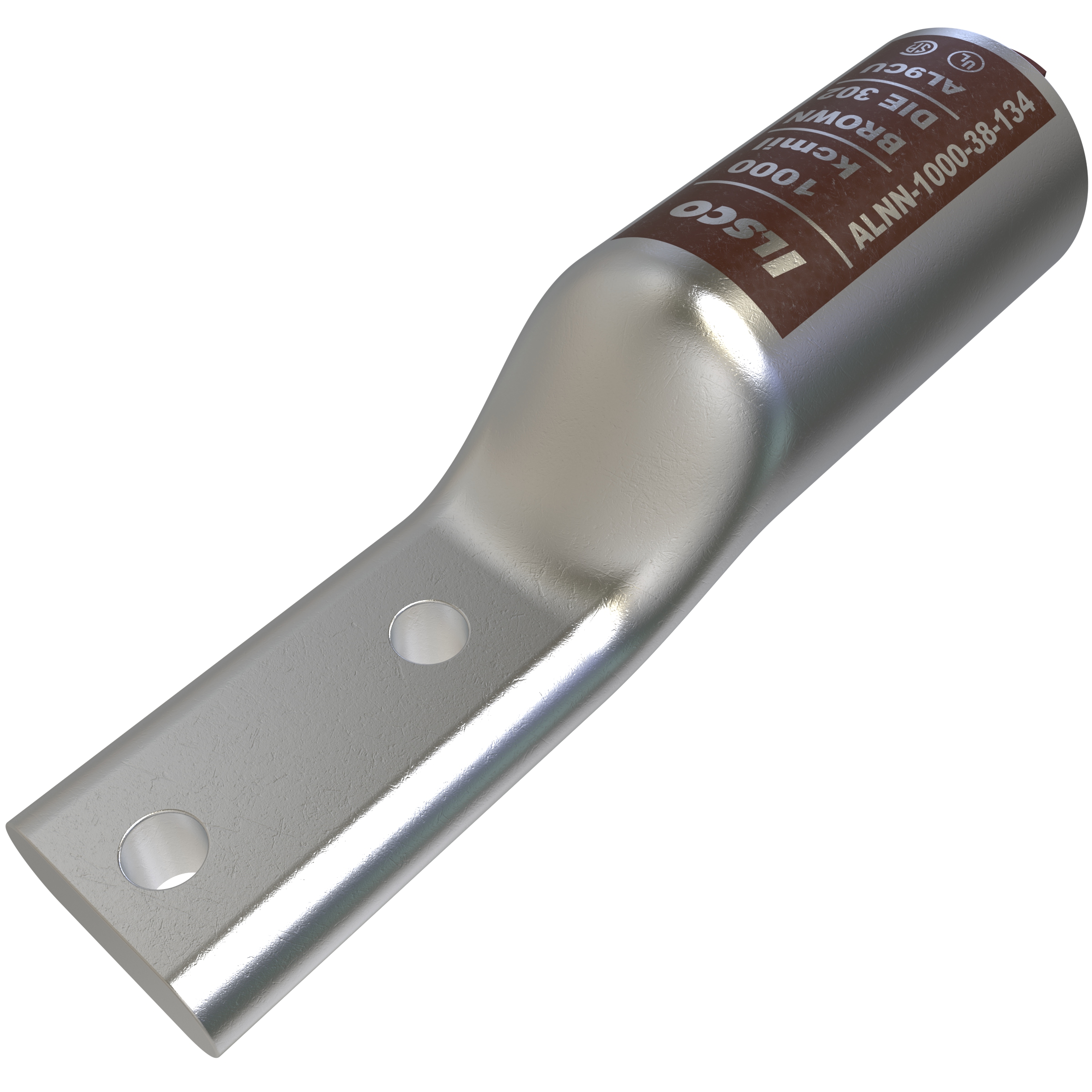

ILS ALNN-1000-38-134 AL COMP NARROW

Manufacturer: Ilsco | Catalog # ALNN-1000-38-134 | QED Part # 4958093
$179.82 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, narrow tang, 2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 1000 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Brown, primary color Silver, die index P302,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
2.996 in
Barrel Type
Long
Color Coding
Brown
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.406 in
Number of Holes
2 Hole
Size
L:7.114;W:1.84;H:1.89 IN
Strip Length
77.685 mm
Temperature Rating
90 degrees C
Type
ALNN:LONG NARROW TANG
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669690965
Color
Silver
Product UPC
78366969096
Weight
0.868 lb

Dimensions

Height
1.89 Inch
Inside Diameter
1.18 in
Length
7.114 Inch
Outside Diameter
1.84 in
Width
1.84 in
