ILS ALND-1000-38-1 AL COMP 1000 kcm

Manufacturer: Ilsco | Catalog # ALND-1000-38-1 | QED Part # 4958086
$156.35 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet

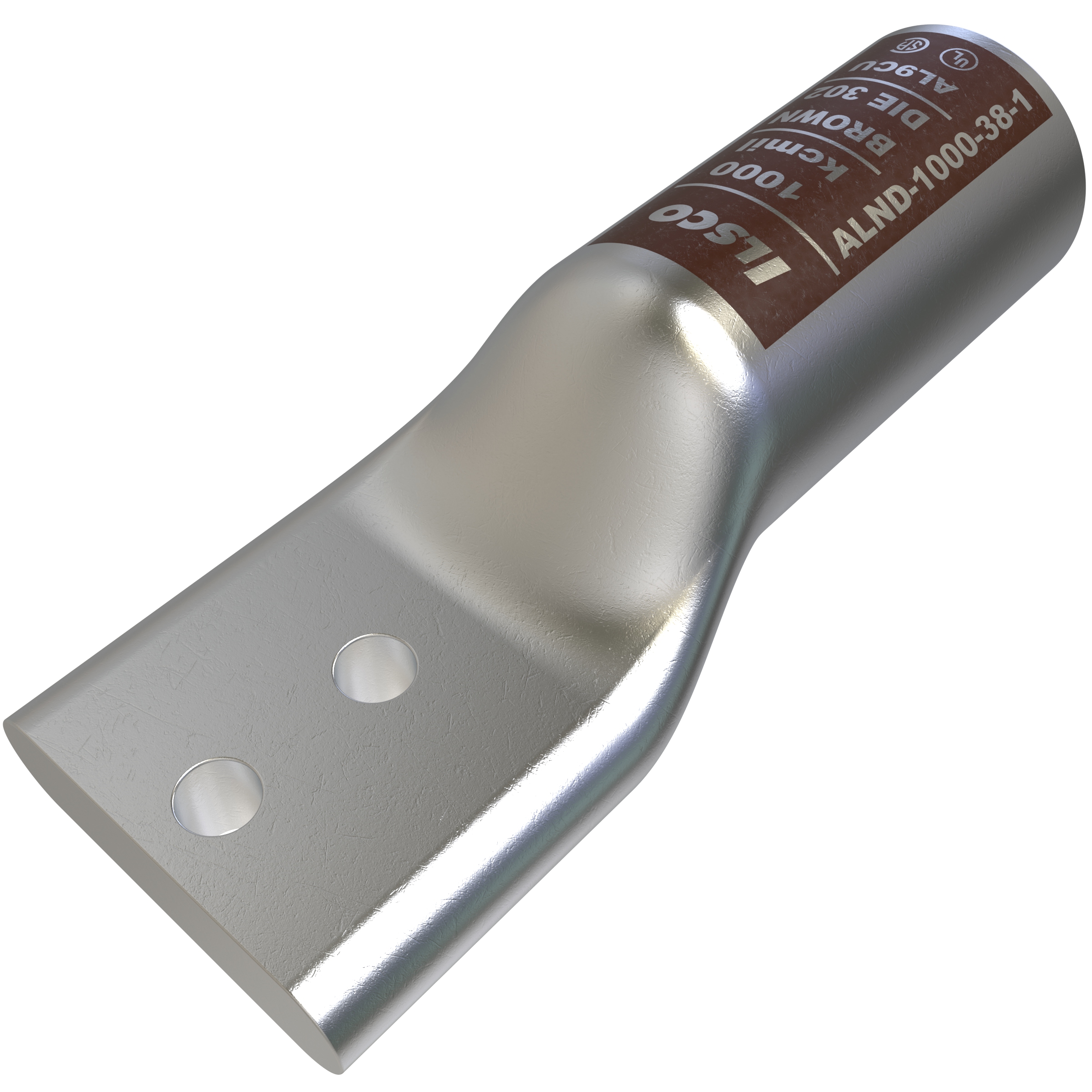

Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1 in., UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 1000 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Brown, primary color Silver, die index P302,

Technical Information

Applications
Aluminum Compression Lug
Conductor Type
Stranded
Material
Aluminum
Size
L:6.5;W:2.514;H:1.89 IN
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Temperature Rating
90 degrees C
Type
ALND:2 HOLE LONG BARREL
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669690767
Color
Silver
Product UPC
78366969076
