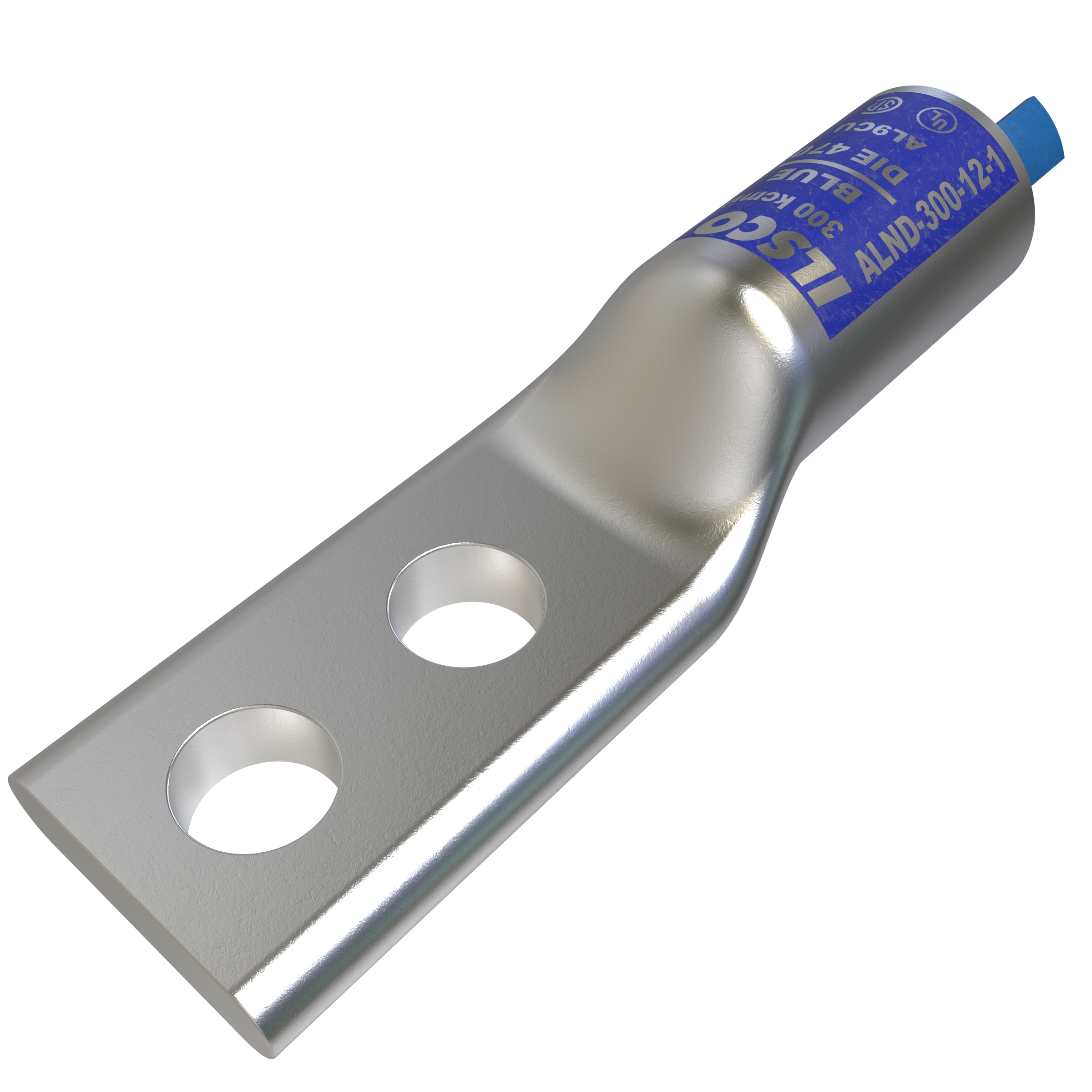

ILS ALND-300-12-1 AL COMP 300 kcmil

Manufacturer: Ilsco | Catalog # ALND-300-12-1 | QED Part # 4958082
$47.96 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1 in., UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 300 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Blue, primary color Silver, die index 470,

Technical Information

Applications
Aluminum Compression Lug
Conductor Type
Stranded
Material
Aluminum
Size
L:4.518;W:1.381;H:1.05 IN
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Temperature Rating
90 degrees C
Type
ALND:2 HOLE LONG BARREL
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Surecrimp

General Product Info

12-Digit UPC
783669690590
Color
Silver
Product UPC
78366969059
