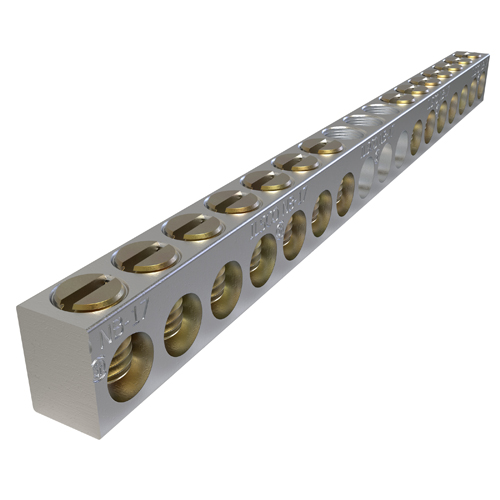

Product image for Ilsco NBAS-014-1-B Aluminum Neutral Bar, Dual-Rated, 14-Circuit, Headless Slot Drive Screw. Conductor Range: #4-#14
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco NBAS-014-1-B Aluminum Neutral Bar, Dual-Rated, 14-Circuit, Headless Slot Drive Screw. Conductor Range: #4-#14

Manufacturer: Ilsco | Catalog # NBAS-014-1-B | QED Part # 4958023
$44.99 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Aluminum Neutral Bar, Dual Rated, Conductor Range 4-14, 14 Ports, 1 Hole, #10 Bolt, Headless Slot Drive, UL, CSA

Technical Information

Applications
Neutral Bar
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Material
Aluminum
Mounting Hole Size
0.203 in
Number of Conductors
14
Number of Holes
1 Hole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Type
NBAS:AL NEUTRAL BAR 4-14
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669005639
Color
Silver
Finish
Tin Plated
Product UPC
78366900563
Weight
0.084 lb

Dimensions

Height
0.437 Inch
Length
5.354 Inch
Width
0.312 in
