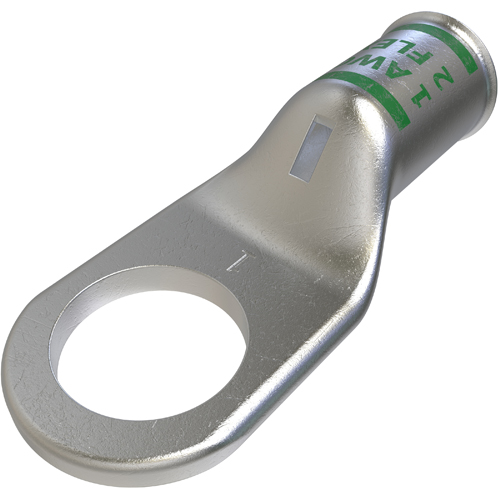

Image thumbnail 1
To:
CC:

ILS CRA-2-12M CU CMP 2 1/2 T UL CSA

Manufacturer: Ilsco | Catalog # CRA-2-12M | QED Part # 4953931
$6.36 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Copper Mining Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 1 Str, sight window, Round tang end, flex conductor range 2 G,H,I,K,M,DLO, rated for 35 kV, die color code Green, primary color Silver, die index I-37,

Technical Information

Applications
Copper Mining Lug
Barrel Length
0.575 in
Barrel Type
Standard
Bolt Size
1/2 IN
Conductor Material
Copper
Conductor Type
Flex,Stranded
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.522 in
Number of Holes
1 Hole
Size
L:1.83;W:0.755;H:0.52 IN
Temperature Rating
90 degrees C
Type
CRAM:MINING LUGS
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669098204
Color
Green,Silver
Product UPC
78366909820
Weight
0.04 lb

Dimensions

Height
0.52 Inch
Inside Diameter
0.36 in
Length
1.83 Inch
Outside Diameter
0.46 in
Width
0.755 in

Certifications and Compliance

Country of Origin
India
