ILS CRA-6-516M CU CMP 6 5/16 T UL C

Manufacturer: Ilsco | Catalog # CRA-6-516M | QED Part # 4953919

$3.29 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days

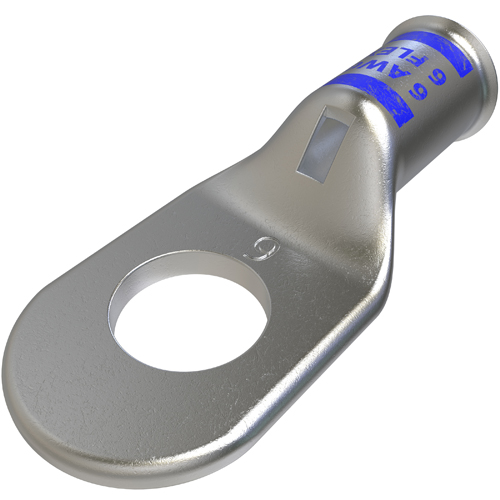

ILSCO Copper Mining Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 6 Str, sight window, Round tang end, flex conductor range 6 G,H,I,K,M,DLO, rated for 35 kV, die color code Blue, primary color Silver, die index I-24,

Technical Information

Applications
Copper Mining Lug
Bolt Size
5/16 IN
Material
Copper
Size
L:1.41;W:0.605;H:0.385 IN
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Temperature Rating
90 degrees C
Type
CRAM:MINING LUGS
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669098082
Color
Silver
Product UPC
78366909808

Certifications and Compliance

Country of Origin
India
