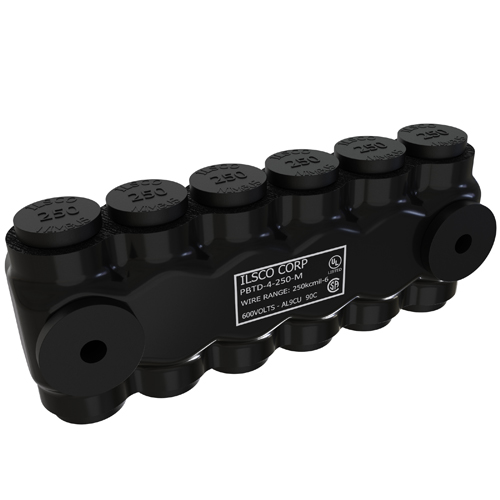

ILSCO PBTD-4-250-M INSUL AL MECH (4) 250-6 MTG TUL CSA

Manufacturer: Ilsco | Catalog # PBTD-4-250-M | QED Part # 4953695
$231.31 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Nimbus Mountable Insulated Multi-Tap Connector Dual Side Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting hole spacing 4.65 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, Contains DE-OX®, 4 conductors, 4 ports/wireways, Plastisol insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
290 Amp
Applications
Mountable Insulated Multi-Tap Connector Dual Side Entry
Conductor Material
Aluminum,Copper
Conductor Size
6 AWG-250 kcmil
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum
Mounting Hole Size
0.266 in
Number of Conductors
4
Number of Holes
2 Hole
Number of Ports
4
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
-45 to 90 degrees C
Type
Insulated, Mountable, PBTD
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669080971
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366908097
Weight
0.769 lb

Dimensions

Height
2.197 Inch
Length
5.814 Inch
Width
2.318 in
