ILS RLT-8 CU CMP 300-500 5/8 ROD UL

Manufacturer: Ilsco | Catalog # RLT-8 | QED Part # 4953089
$111.60 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet

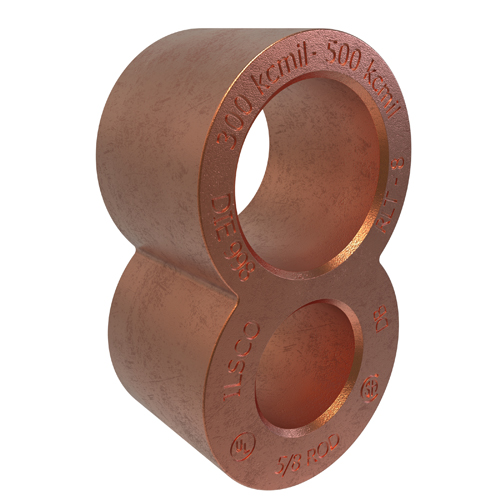

Permaground Grounding Connector, Copper material, Bare plated connector, UL 467 Listed, C22.2 No. 41, Copper Primary Conductor 500 kcmil - 300 kcmil, Copper Secondary Conductor 500 kcmil - 300 kcmil, 5/8 nominal ground rod, primary color Copper, die index 998, 1011,

Technical Information

Applications
For Copper Conductors Only
Conductor Material
Copper
Conductor Size
300-500 kcmil
Conductor Type
Stranded
Direct Burial?
Yes
Material
Copper
Size
L:1.234;W:0.875;H:2.142 IN
Temperature Rating
NA degrees C
Type
RLT

Manufacturer Information

Brand
Ilsco
Sub Brand
PermaGround™

General Product Info

12-Digit UPC
783669715767
Color
Copper
Product UPC
78366971576
Used With
Ground Rod
Weight
0.376 lb

Dimensions

Height
2.142 Inch
Length
1.234 Inch
Width
0.875 in
