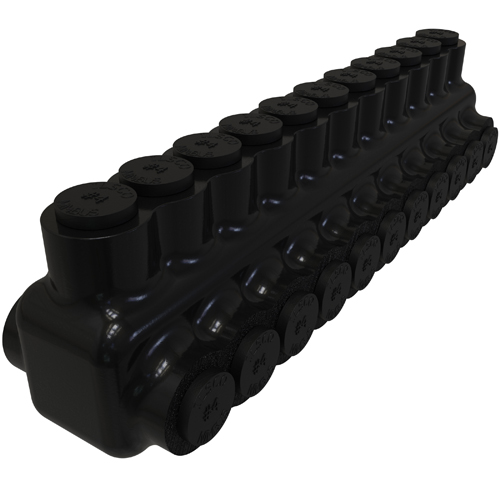

Product image for ILSCO PBTD-11-4 INSUL AL MECH (11) 4-14 DUAL TUL CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

ILSCO PBTD-11-4 INSUL AL MECH (11) 4-14 DUAL TUL CSA

Manufacturer: Ilsco | Catalog # PBTD-11-4 | QED Part # 4953076
$223.81 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 11 conductors, 11 ports/wireways, Plastisol insulation, Drive Type Main 1/8 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
95 Amp
Applications
Insulated Multi-Tap Connector, Dual Sided Entry
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
11
Number of Ports
11
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Two Side, PBTD, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669077285
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366907728
Weight
0.319 lb

Dimensions

Height
1.415 Inch
Length
5.362 Inch
Width
1.394 in
