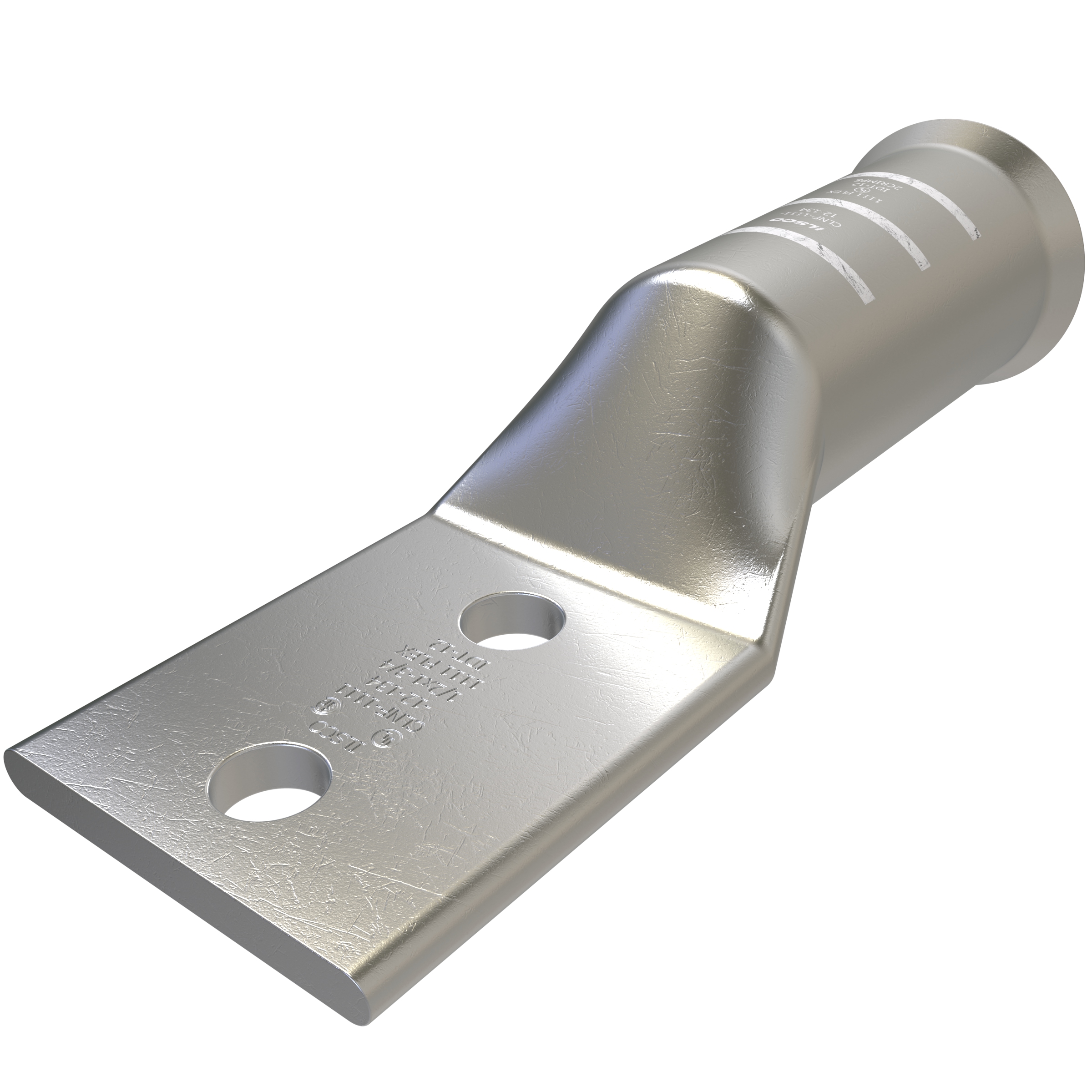

Product image for ILS CLNF-1111-12-134 CU CMP 1111.1
Image thumbnail 0
Image thumbnail 1
To:
CC:

ILS CLNF-1111-12-134 CU CMP 1111.1

Manufacturer: Ilsco | Catalog # CLNF-1111-12-134 | QED Part # 4953003
$417.36 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Copper Compression Lug, Copper material, Tin plated connector,Long barrel, standard tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 1111 kcmil, flared end, no sight window, Square tang end, rated for 35 kV, die color code White, primary color Silver,

Technical Information

Applications
Terminating Connector
Barrel Length
2.998 in
Barrel Type
Long
Bolt Size
1/2 IN
Conductor Material
Copper
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.563 in
Number of Holes
2 Hole
Size
L:6.365;W:2.6;H:1.99 IN
Standard
CSA,E2186,UL
Strip Length
85.737 mm
Temperature Rating
90 degrees C
Type
CLNF:LONG FLARED BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669651522
Color
Silver
Product UPC
78366965152
Weight
1.898 lb

Dimensions

Height
1.99 Inch
Inside Diameter
1.458 in
Length
6.365 Inch
Outside Diameter
1.75 in
Width
2.6 in
