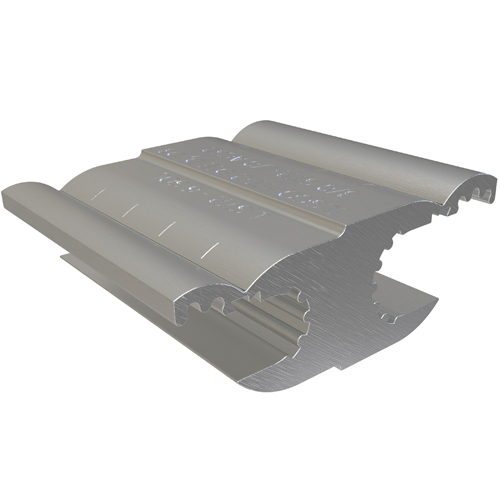

Product image for ILSCO HT-2 CSA 3/0-2/0 AWG Main Range 1-6 AWG Tap Range Aluminum Compression Tap
Image thumbnail 0
Image thumbnail 1
To:
CC:

ILSCO HT-2 CSA 3/0-2/0 AWG Main Range 1-6 AWG Tap Range Aluminum Compression Tap

Manufacturer: Ilsco | Catalog # HT-2 | QED Part # 4952880
$9.49 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Aluminum Compression Tap Connector, Dual Rated, Aluminum material, Copper/Aluminum Primary Conductor 3/0 Str - 2/0 Str, Copper/Aluminum Secondary Conductor 1/0 Sol - 6 Sol and 1 Str - 6 Str, rated for 35 kV, primary color Silver, die index D3,

Technical Information

Applications
Use in Circuits Rated 35 kV or Less
Conductor Material
Aluminum,Copper
Conductor Type
ACSR/Aluminum/Copper/Solid/Stranded
Direct Burial?
No
Material
Aluminum
Resistance
Corrosion
Size
L:1.875;W:0.831;H:2.18 IN
Temperature Rating
90 ?C
Type
Serrated
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669461244
Color
Silver
Product UPC
78366946124
Used With
ACSR/Aluminum/Copper/Solid/Stranded Conductors
Weight
0.156 lb

Dimensions

Height
2-3/16 Inch
Length
1-7/8 Inch
Width
13/16 in
