ILS GPL-38 BRZ MEC 4 AWG-8 SOL UL C

Manufacturer: Ilsco | Catalog # GPL-38 | QED Part # 4952774
$204.41 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet

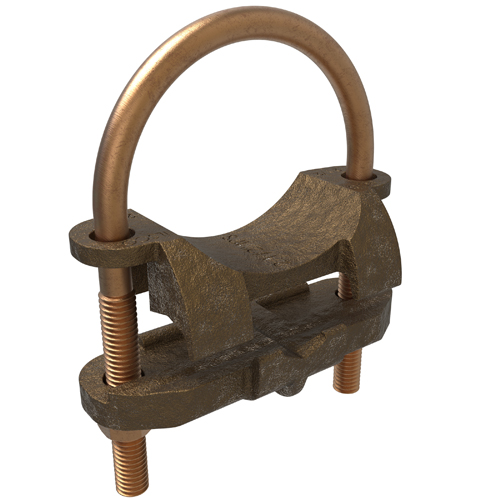

Permaground Copper U-Bolt Ground Clamp, Conductor Range 4-8 Sol, Pipe Size 2-1/2in, Ground Rod Sizes 2-1/2 to 2-7/8in, UL, CSA

Technical Information

Applications
U-Bolt Ground Clamp
Material
Bronze
Number of Conductors
1
Tc Connection
Mechanical
Type
GPL:BRONZE U BOLT

Manufacturer Information

Brand
nVent Erico
Sub Brand
Permaground

General Product Info

12-Digit UPC
783669262704
Finish
Bare
Product UPC
78366926270
Features
  • Specifically designed for a single conductor connection
  • Offers a theft-deterrent appearance for enhanced security
  • Includes robust stainless steel or silicone bronze hardware for superior strength and longevity
  • Made from high quality copper alloy that minimizes the risk of corrosion while ensuring reliable conductivity
  • Versatile design accepts the conductor placement either parallel or at right angles to the pipe or post
Certifications
  • UL KDER ANSI/UL 467
  • CSA 4414-04 CSA C22.2 No. 41
