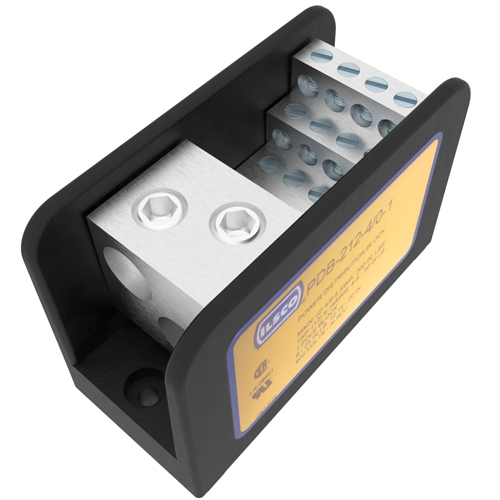

Product image for Ilsco PDB-212-4/0-1 Power Distribution Block, Dual Rated, Line Conductor Range 4/0-6, Load Range 4-14, 2 Ports Per Pole Line Side, 12 Ports Per Pole Load Side, 1 Pole, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco PDB-212-4/0-1 Power Distribution Block, Dual Rated, Line Conductor Range 4/0-6, Load Range 4-14, 2 Ports Per Pole Line Side, 12 Ports Per Pole Load Side, 1 Pole, UL, CSA

Manufacturer: Ilsco | Catalog # PDB-212-4/0-1 | QED Part # 4952632
$277.05 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size #10 in, mounting hole spacing 3.375 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4/0 Str - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 4 Str - 14 Str, 14 conductors, Drive Type Main 1/4 Internal Hex, Drive Type Tap Slotted, rated for 600 V, primary color Black, 1 poles, 2 ports per pole primary, 12 ports per pole secondary,

Technical Information

Amperage
CU:460 AMP
Applications
Power Distribution Block
Enclosure
Valox
Material
Aluminum
Number of Conductors
14
Number of Poles
1 Pole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PDB:PWR DIST BLK AL/CU
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669710625
Color
Black
Finish
Tin Plated
Product UPC
78366971062
