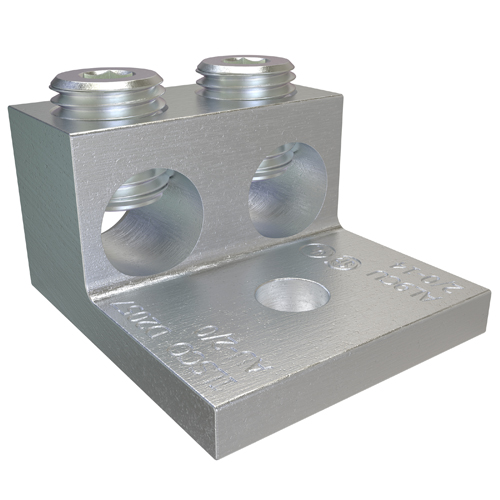

Product image for Ilsco AU-2/0-B2 Aluminum Mechanical Lug, Conductor Range 2/0-14, 2 Ports, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA, Bag od 2
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco AU-2/0-B2 Aluminum Mechanical Lug, Conductor Range 2/0-14, 2 Ports, 1 Hole, 1/4in Bolt Size, Tin Plated, UL, CSA, Bag od 2

Manufacturer: Ilsco | Catalog # AU-2/0-B2 | QED Part # 4952599
$34.67 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 2/0 Str - 14 Str and 10 Sol - 14 Sol, 2 conductors, 2 ports/wireways, Drive Type Main 3/16 Internal Hex, rated for 35 kV, primary color Silver, bag quantity 2, 1 poles,

Technical Information

Applications
Mechanical Lug, Two Conductor
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Number of Conductors
2
Number of Holes
1 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
AUB:2 WIRE AL/CU BAG
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669000757
Color
Silver
Finish
Tin Plated
Product UPC
78366900075
Weight
0.155 lb

Dimensions

Height
0.794 Inch
Length
8.4 Inch
Width
3 in
