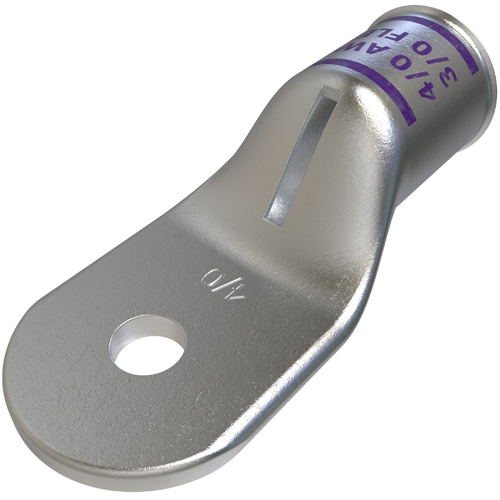

Product image for Ilsco CCL-4/0-14 Copper Compression Lug, Conductor Size 4/0, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco CCL-4/0-14 Copper Compression Lug, Conductor Size 4/0, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CCL-4/0-14 | QED Part # 4952193
$15.33 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 4/0 Str, sight window, Round tang end, flex conductor range 3/0 G,H,I,K,M,DLO, rated for 35 kV, die color code Purple, primary color Silver, die index I-54,

Technical Information

Applications
Terminating Connector
Bolt Size
1/4 IN
Material
Copper
Size
L:2.39;W:1.035;H:0.78 IN
Standard
CSA,E2186,UL
Temperature Rating
90 degrees C
Type
Light Duty
Voltage
35,000 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669031706
Color
Silver
Product UPC
78366903170

Certifications and Compliance

Country of Origin
India
