ILS CCL-1-516 CU CMP 1-516 T UL CSA

Manufacturer: Ilsco | Catalog # CCL-1-516 | QED Part # 4952183
$6.54 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet

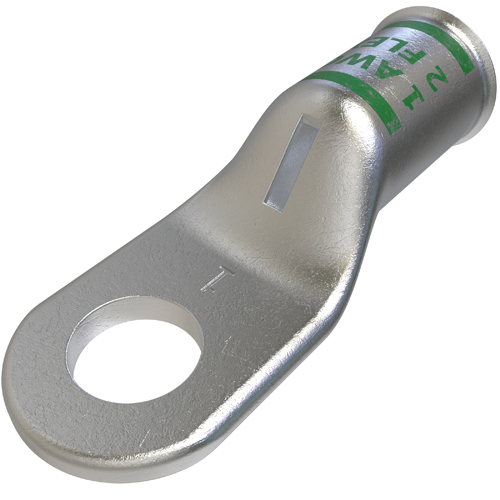

ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 5/16 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 1 Str, sight window, Round tang end, flex conductor range 2 G,H,I,K,M,DLO, rated for 35 kV, die color code Green, primary color Silver, die index I-37,

Technical Information

Applications
Terminating Connector
Barrel Type
Straight, Seamless
Bolt Size
5/16 IN
Conductor Size
1 AWG
Material
Copper
Number of Holes
1 Hole
Size
L:1.72;W:0.655;H:0.52 IN
Standard
CSA,E2186,UL
Stud Size
5/16 in
Temperature Rating
90 degrees C
Type
Light Duty
Voltage
35000 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669031409
Color
Silver
Finish
Electro Tin Plated
Product UPC
78366903140

Dimensions

Overall Length
1.72 in

Certifications and Compliance

Country of Origin
India
