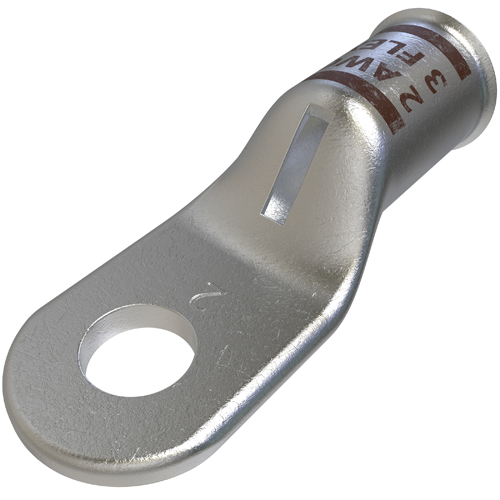

Product image for Ilsco CCL-2-14 Copper Compression Lug, Conductor Size 2, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco CCL-2-14 Copper Compression Lug, Conductor Size 2, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CCL-2-14 | QED Part # 4952182
$6.26 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 2 Str, sight window, Round tang end, flex conductor range 3 G,H,I,K,M,DLO, rated for 35 kV, die color code Brown, primary color Silver, die index I-33,

Technical Information

Applications
Terminating Connector
Bolt Size
1/4 IN
Material
Copper
Size
L:1.62;W:0.615;H:0.5 IN
Standard
CSA,E2186,UL
Temperature Rating
90 degrees C
Type
Light Duty
Voltage
35,000 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669031300
Color
Silver
Product UPC
78366903130

Certifications and Compliance

Country of Origin
India
