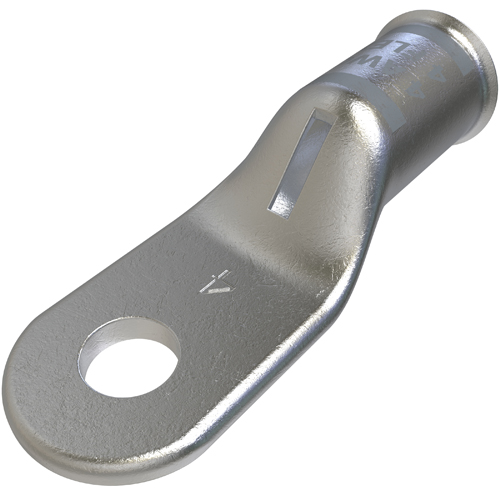

Product image for ILS CCL-4-10 CU CMP 4-10 T UL CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

ILS CCL-4-10 CU CMP 4-10 T UL CSA

Manufacturer: Ilsco | Catalog # CCL-4-10 | QED Part # 4952181
$3.88 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size #10 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 4 Str, sight window, Round tang end, flex conductor range 4 G,H,I,K,M,DLO, rated for 35 kV, die color code Gray, primary color Silver, die index I-29,

Technical Information

Applications
Copper Compression Lug
Bolt Size
#10
Material
Copper
Size
L:1.5;W:0.525;H:0.435 IN
Temperature Rating
90 degrees C
Type
CCL:1 HOLE, LIGHT DUTY
Voltage
35,000 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669031201
Color
Silver
Product UPC
78366903120

Certifications and Compliance

Country of Origin
India
