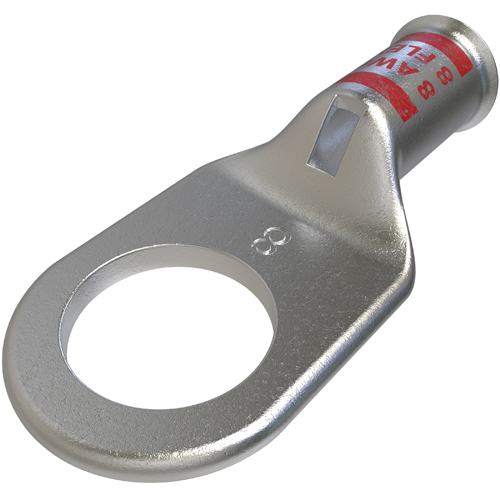

Ilsco CCL-8-38 Copper Compression Lug, Conductor Size 8, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CCL-8-38 | QED Part # 4952180
$2.51 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 8 Str, sight window, Round tang end, flex conductor range 8 G,H,I,K,M,DLO, rated for 35 kV, die color code Red, primary color Silver, die index I-21,

Technical Information

Applications
Terminating Connector
Bolt Size
3/8 IN
Conductor Size
8 AWG
Material
Copper
Number of Holes
1 Hole
Size
L:1.305;W:0.605;H:0.33 IN
Stud Size
3/8 in
Temperature Rating
90 degrees C
Type
Light Duty
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669031065
Color
Silver
Finish
Electro-Tin Plated
Product UPC
78366903106

Dimensions

Overall Length
1.276 in

Certifications and Compliance

Country of Origin
India
