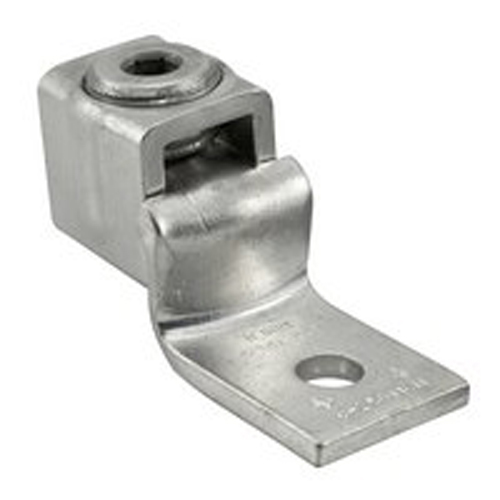

Product image for ILS SLUH-650 CU MEC 1000-4/0 17/32
Image thumbnail 0
Image thumbnail 1
To:
CC:

ILS SLUH-650 CU MEC 1000-4/0 17/32

Manufacturer: Ilsco | Catalog # SLUH-650 | QED Part # 4952155
$327.42 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Heavy Duty Lug, One Conductor, Mechanical connection, Copper material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 1000 kcmil - 4/0 Str, 1 conductors, 1 ports/wireways, Drive Type Main 3/8 Internal Hex, flex conductor range 750-3/0 G,H 650-2/0 I, 600-2/0 K,M 646.4-3/0 DLO (with exceptions), rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
Mechanical Heavy Duty Lug, One Conductor
Conductor Material
Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.508 in
Number of Conductors
1
Number of Holes
1 Hole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Heavy Duty
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669845891
Color
Copper
Finish
Tin Plated
Product UPC
78366984589
Weight
1.89 lb

Dimensions

Height
3.028 Inch
Length
4.313 Inch
Width
2 in
