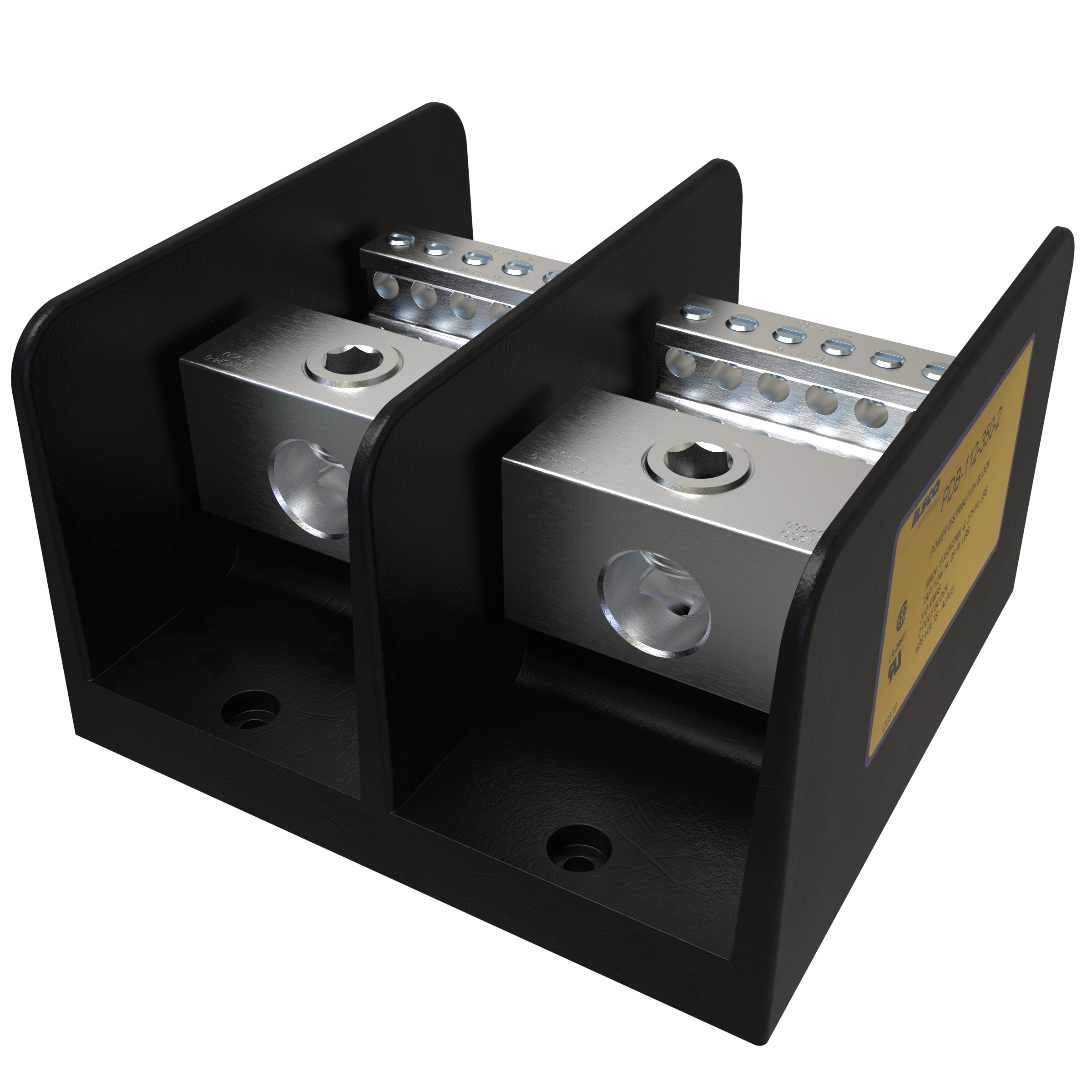

ILS PDB-112-350-2 AL MEC LINE350-6

Manufacturer: Ilsco | Catalog # PDB-112-350-2 | QED Part # 4952141
$509.62 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 4 Str - 14 Str, 13 conductors, 26 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap Slotted, rated for 600 V, primary color Black, 2 poles, 1 ports per pole primary, 12 ports per pole secondary,

Technical Information

Amperage
CU:310 AMP
Applications
Power Distribution Block
Enclosure
Valox
Material
Aluminum
Number of Conductors
13
Number of Poles
2 Pole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PDB:PWR DIST BLK AL/CU
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669710571
Color
Black
Finish
Tin Plated
Product UPC
78366971057
