Ilsco NB-350-42 Aluminum Neutral Bar, Dual Rated, Main Conductor Range 350-6, Tap Range 4-14, 42 Tap Ports, 2 Holes, #10-32 Bolt, Tin Plated, UL, CSA | Quality Electrical Distribution (QED)

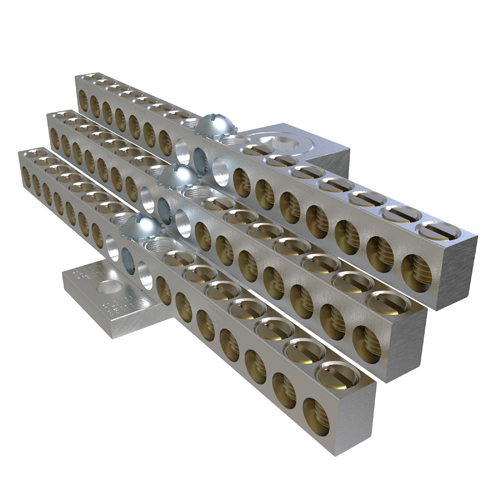

Product image for Ilsco NB-350-42 Aluminum Neutral Bar, Dual Rated, Main Conductor Range 350-6, Tap Range 4-14, 42 Tap Ports, 2 Holes, #10-32 Bolt, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco NB-350-42 Aluminum Neutral Bar, Dual Rated, Main Conductor Range 350-6, Tap Range 4-14, 42 Tap Ports, 2 Holes, #10-32 Bolt, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # NB-350-42 | QED Part # 4952122
$259.84 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Neutral Bar, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size #10-32 in, UL 486A/B Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 4 Str - 14 Str, 4 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap Slotted, rated for 600 V, primary color Silver, 1 poles,

Technical Information

Applications
Neutral Bar
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Material
Aluminum
Mounting Hole Size
0.219 in
Number of Conductors
4
Number of Holes
2 Hole
Number of Ports
42
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Type
NB:AL NEUTRAL BARS
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669698855
Color
Silver
Finish
Tin Plated
Product UPC
78366969885
Weight
0.512 lb

Dimensions

Height
1.513 Inch
Length
2.531 Inch
Width
5.354 in
