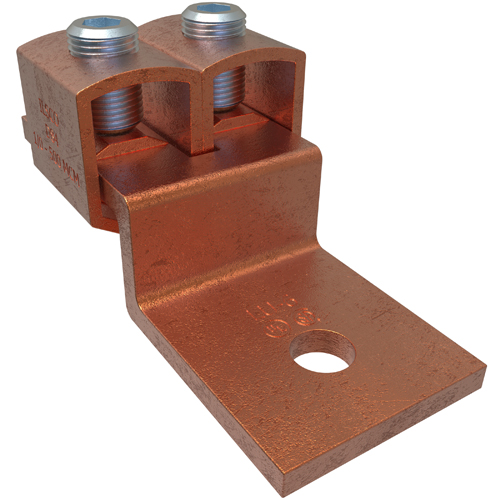

Product image for Ilsco LU-6 Copper Mechanical Lug Offset, Conductor Range 500-1/0, 2 Ports, 1 Hole, 1/2in Bolt Size, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco LU-6 Copper Mechanical Lug Offset, Conductor Range 500-1/0, 2 Ports, 1 Hole, 1/2in Bolt Size, UL, CSA

Manufacturer: Ilsco | Catalog # LU-6 | QED Part # 4952110
$289.35 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 500 kcmil - 1/0 Str, 2 conductors, 2 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
For Use in Circuits
Bolt Size
1/2 in
Conductor Material
Copper
Conductor Size
500 kcmil - 1/0 AWG Copper Stranded (Primary, Run, Main, Line)
Conductor Type
Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.531 in
Number of Conductors
2
Number of Holes
1 Hole
Number of Ports
2
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Tongue Type
Offset
Type
Compact Design, 2-Port
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669593914
Color
Copper
Product UPC
78366959391
Weight
1.62 lb

Dimensions

Height
2.362 Inch
Length
4.438 Inch
Width
2.284 in

Certifications and Compliance

Country of Origin
India
