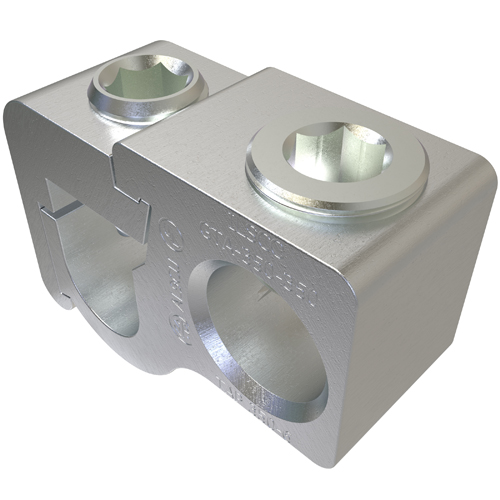

Product image for Ilsco GTA-350-350 Aluminum Parallel Tap Connector, Dual Rated, Main Conductor Range 350-4/0, Tap Range 350-6, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco GTA-350-350 Aluminum Parallel Tap Connector, Dual Rated, Main Conductor Range 350-4/0, Tap Range 350-6, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # GTA-350-350 | QED Part # 4952015
$61.87 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Parallel Tap Connector, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 4/0 Str, Copper/Aluminum Secondary Conductor 350 kcmil - 6 Str, 2 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/8 Internal Hex, rated for 600 V, primary color Silver, 1 poles,

Technical Information

Applications
For Tap Connector
Conductor Size
4/0 AWG-350 kcmil/6 AWG-350 kcmil
Material
Aluminum
Number of Conductors
2
Number of Ports
1
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Lay-In
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669342352
Color
Silver
Finish
Electro Tin Plated
Product UPC
78366934235
Used With
Copper and Aluminum Conductor
