ILS E-300 CU MEC 350-1/0 13/32-1 B

Manufacturer: Ilsco | Catalog # E-300 | QED Part # 4951997
$86.02 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet

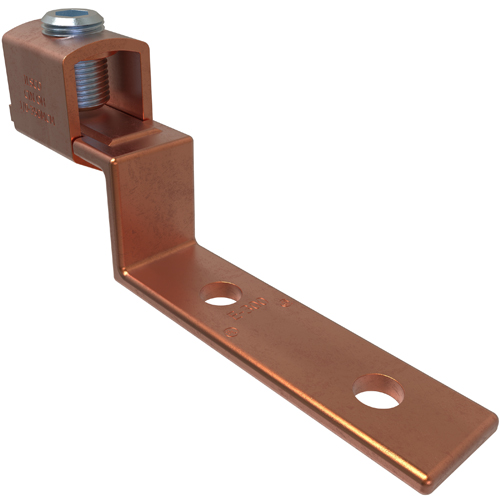

ILSCO Mechanical Lug, One Conductor, Mechanical connection, Copper material, 2 mounting hole(s), mounting bolt/stud size 3/8 in, mounting hole spacing 1.875 in., UL 486A/B Listed, C22.2 No. 65-03, Copper Primary Conductor 350 kcmil - 1/0 Str, 1 conductors, 1 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Copper, 1 poles,

Technical Information

Applications
Mechanical Lug, One Conductor
Conductor Material
Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Copper
Mounting Hole Size
0.406 in
Number of Conductors
1
Number of Holes
2 Hole
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
E:2 HOLE OFFSET
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669251241
Color
Copper
Product UPC
78366925124
Weight
0.485 lb

Dimensions

Height
2.376 Inch
Length
5.688 Inch
Width
1 in

Certifications and Compliance

Country of Origin
India
