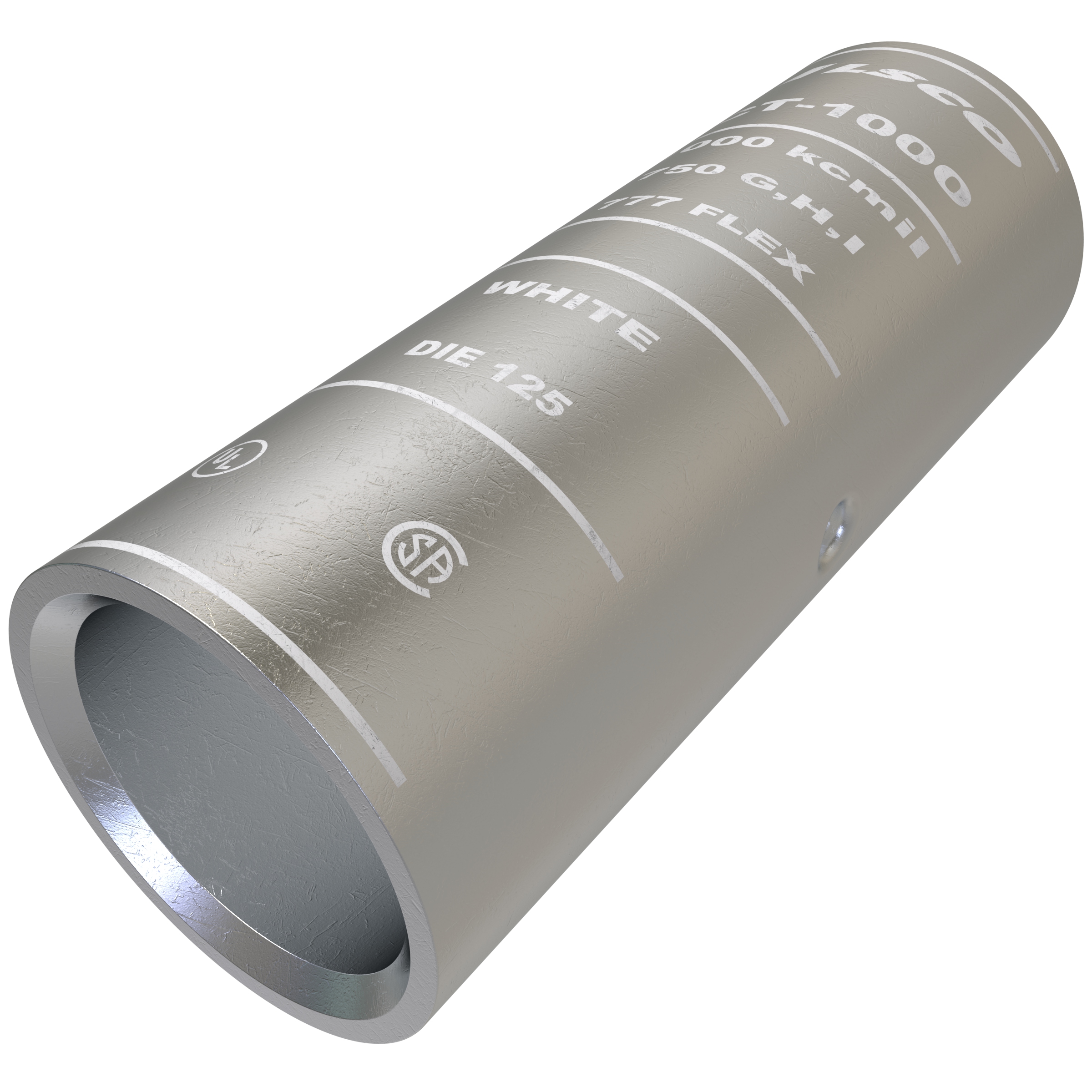

Product image for Ilsco CT-1000 SureCrimp® Copper Compression Sleeve, Conductor Size 1000, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
To:
CC:

Ilsco CT-1000 SureCrimp® Copper Compression Sleeve, Conductor Size 1000, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CT-1000 | QED Part # 4951985
$70.07 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Surecrimp Copper Compression Sleeve, Short Barrel, Compression connection, Copper material, Tin plated connector,Standard barrel, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper Primary Conductor 1000 kcmil, 1 conductors, no sight window, flex conductor range 750 G,H,I 777.7 DLO, rated for 35 kV, die color code White, primary color Silver, die index I-125,

Technical Information

Applications
For Splicer/Reducer
Conductor Size
1000 kcmil
Conductor Type
Copper
Connector Type
Parallel
Material
Copper
Size
L:3.875;W:1.5;H:1.5 IN
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
UL Model
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669127454
Color
Silver
Finish
Tin Plated
Product UPC
78366912745
