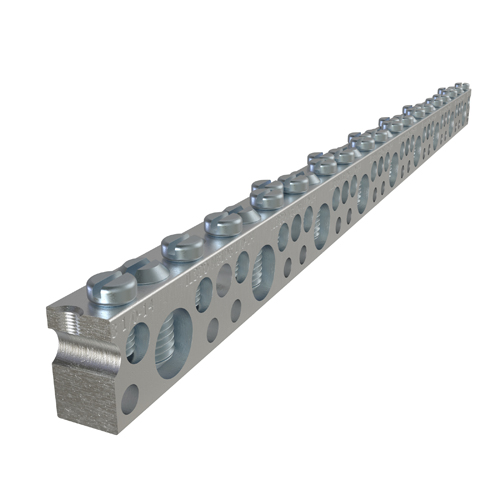

Product image for ILS NBAE-0924-2 AL MEC (9)1/0-14 (2
Image thumbnail 0
Image thumbnail 1
To:
CC:

ILS NBAE-0924-2 AL MEC (9)1/0-14 (2

Manufacturer: Ilsco | Catalog # NBAE-0924-2 | QED Part # 4934920
$120.41 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Neutral Bar, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size #10 in, mounting hole spacing 7.031 in., UL 486A/B Recognized, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 1/0 Str - 14 Str and 10 Sol - 14 Sol, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 6 Str - 14 Str, 1 conductors, Drive Type Main Slotted, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Neutral Bar
Conductor Material
Aluminum,Copper
Conductor Type
Solid,Stranded
Connection Type
Mechanical
Material
Aluminum
Mounting Hole Size
0.203 in
Number of Conductors
1
Number of Holes
2 Hole
Number of Ports
24
Tc Connection
Mechanical
Type
NBAE:AL NEUTRAL BAR 1/0-14
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669005844
Color
Silver
Finish
Tin Plated
Product UPC
78366900584
Weight
0.295 lb

Dimensions

Height
0.729 Inch
Length
10.468 Inch
Width
0.375 in
