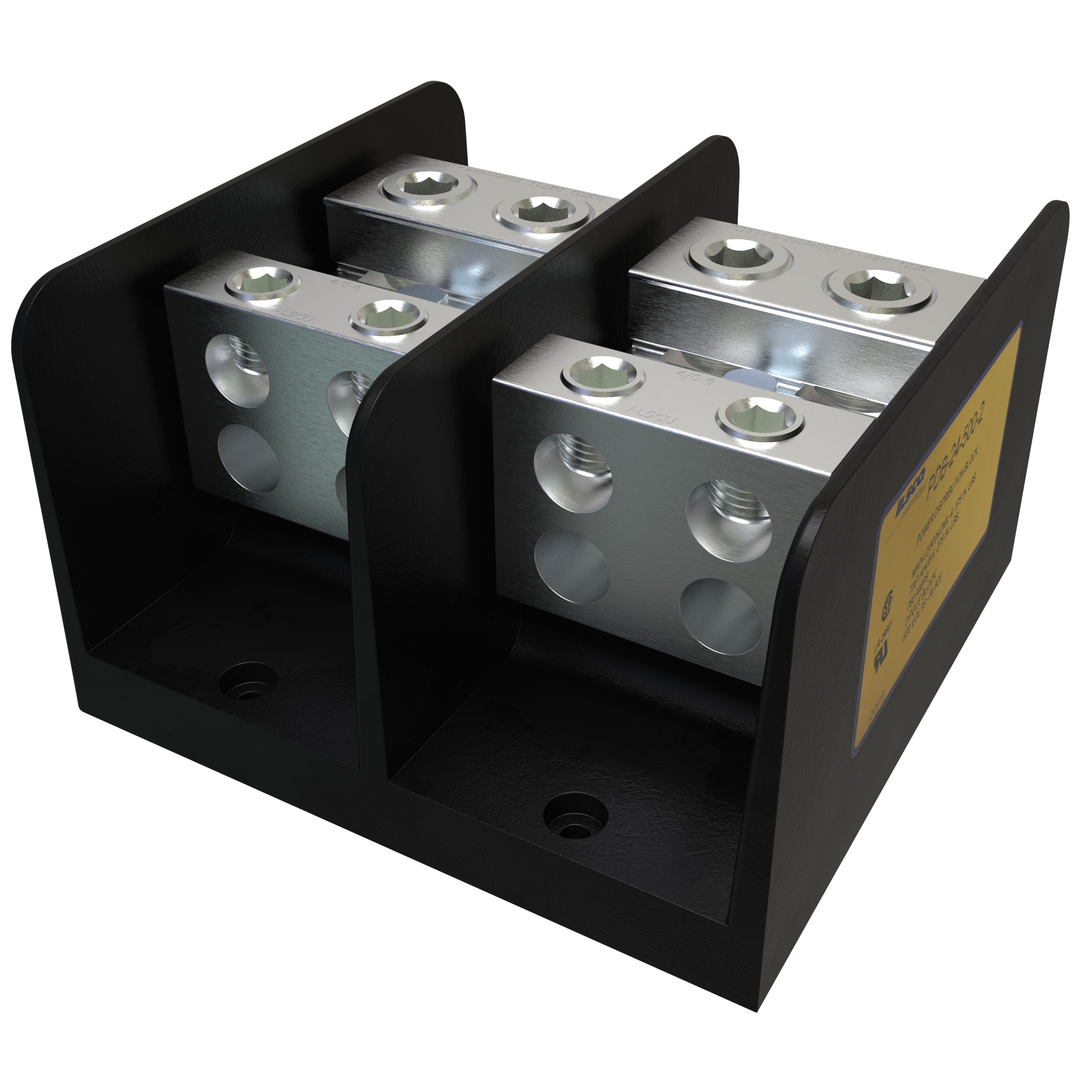

Product image for Ilsco PDB-24-500-2 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 4/0-6, 2 Ports Per Pole Line Side, 4 Ports Per Pole Load Side, 2 Pole, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

Ilsco PDB-24-500-2 Power Distribution Block, Dual Rated, Line Conductor Range 500-4, Load Range 4/0-6, 2 Ports Per Pole Line Side, 4 Ports Per Pole Load Side, 2 Pole, UL, CSA

Manufacturer: Ilsco | Catalog # PDB-24-500-2 | QED Part # 49185
$513.17 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, Copper/Aluminum Secondary Conductor 4/0 Str - 6 Str, 6 conductors, Drive Type Main 3/8 Internal Hex, Drive Type Tap 5/16 Internal Hex, rated for 600 V, primary color Black, 2 poles, 2 ports per pole primary, 4 ports per pole secondary,

Technical Information

Amperage
760 Amp
Applications
Tap Connector
Conductor Size
4 AWG-500 kcmil/6-4/0 AWG
Connection Type
Screw Terminal
Enclosure
Valox
Material
Aluminum
Number of Conductors
6
Number of Poles
2 Pole
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
PDB:PWR DIST BLK AL/CU
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669710694
Color
Black
Finish
Tin Plated
Product UPC
78366971069
