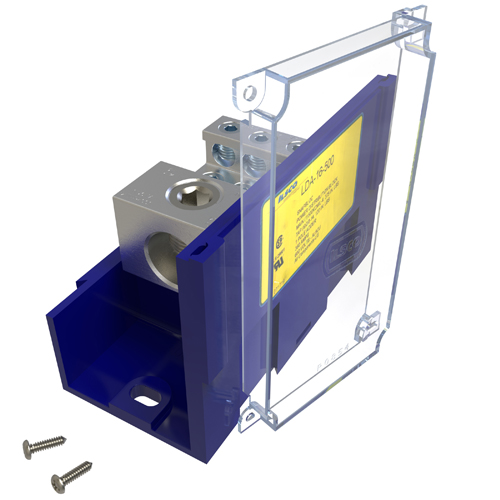

Image thumbnail 2
To:
CC:

ILSCO LDA-16-500 500 kcmil to 4 AWG Primary 14 to 2/0 AWG Secondary T UL CSA Aluminum Mechanical Power Distribution Block

Manufacturer: Ilsco | Catalog # LDA-16-500 | QED Part # 49160
$230.82 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Snapbloc Power Distribution Block, Modular Design, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size 1/4 in, mounting hole spacing 4.75 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 500 kcmil - 4 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 2/0 Str - 14 Str, 7 conductors, 7 ports/wireways, Drive Type Main 3/8 Internal Hex, Drive Type Tap 3/16 Internal Hex, rated for 600 V, primary color Blue, 1 poles, 1 ports per pole primary, 6 ports per pole secondary,

Technical Information

Amperage
CU:380 AMP
Applications
Tap Connector
Enclosure
Thermoplastic
Material
Aluminum
Number of Conductors
7
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
LDB
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SnapBloc®

General Product Info

12-Digit UPC
783669595116
Color
Blue
Finish
Tin Plated
Product UPC
78366959511
