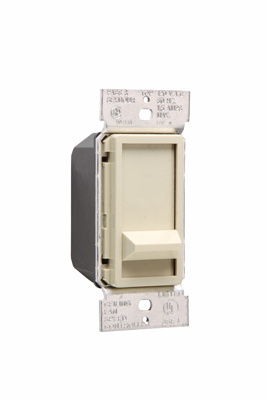

Product image for Pass & Seymour 94084-I 1.5Amp Slide Dehummer Fan Control, Ivory
Image thumbnail 0
Image thumbnail 1
To:
CC:

Pass & Seymour 94084-I 1.5Amp Slide Dehummer Fan Control, Ivory

Manufacturer: Legrand Pass & Seymour | Catalog # 94084I | QED Part # 4908813
$88.57 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Brochure Installation / Instruction Manual
1.5amp Slide Dehummer Fan Control, Ivory

Technical Information

Amperage
1.5 Amp
Applications
Residential
Connection Type
Pigtail Leads
Contact Rating
120 V
Enclosure
Thermoplastic
Frequency
60 Hz
Indoor Outdoor
Indoor
Load Rating
120V 1.5A (FAN MOTOR)
Load Type
AC Fan Motor
Material
Steel
Mounting Type
Wall
Number of Poles
1 Pole
Number of Switches
1
Operating Temperature
0 - 40 degrees C
Size
Depth 1.469" x Width 1.688" x Height 4.25"
Standard
CSA,UL E3803
Switch Type
Slider
Tc Connection
4-Pin Pico Pigtail
Temperature Rating
0 degrees C to 40 degrees C
Terminal Type
Pigtail Lead
Type
1-Pole, Variable Speed
Voltage
120 VAC
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007940824
Color
Ivory
Environmental Conditions
Indoor Only
Finish
Matte
Product Series
Wide Slide
Product UPC
78500794082
UNSPSC
39121502

Dimensions

Depth
1.469 Inch
Height
4-1/4 Inch
Warranty Length
Limited Lifetime
Width
1.688 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Certifications
  • CSA Listed
  • UL Listed
Features
  • Through the use of specially designed capacitive circuitry, these units can control fans at 3- or 4-speed levels in slide, rotary, and dual styles with virtually no fan motor noise.
