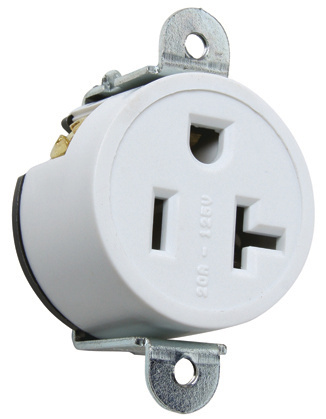

Pass & Seymour 5358-W Commercial Grade Short Strap Single Receptacle Side Wire 20A 125V - White

Manufacturer: Legrand Pass & Seymour | Catalog # 5358W | QED Part # 4908732
$33.55 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet
Short Strap Spec Grade Single Receptacle, Side Wire, 20amp 125volt, Brown

Technical Information

Amperage
20 Amp
Applications
For Residential/Commercial use
Capacity
Single
Conductor Size
14-10 AWG
Grade
Specification
Indoor Outdoor
Indoor
Material
Thermoplastic
NEMA
5-20R
NEMA Rating
5-20R
Number of Phases
3 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
40 degrees F
Outlet Type
Straight Blade
Size
4.25x1.25x1.81
Standard
CSA,E2186,UL
Type
Receptacle
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007585834
Color
White
Finish
Matte
Product UPC
78500758583
UNSPSC
39121406

Dimensions

Depth
1 Inch
Height
1.49 Inch
Length
-4 Inch
Warranty Length
1 yr
Width
1.49 in

Certifications and Compliance

Certifications
CSA,UL
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tri-drive steel terminal screws.
  • One-piece brass triple-wipe power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • CSA Listed
  • UL Listed
